Moxa

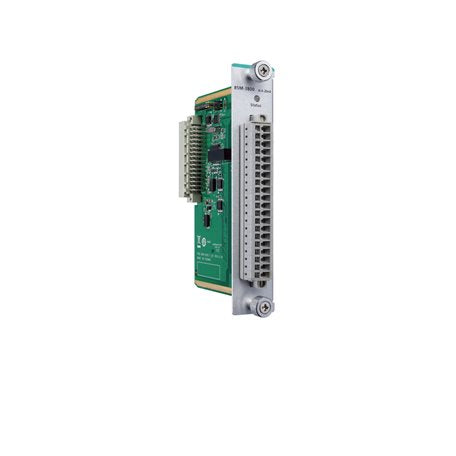

MOXA 85M-3800-T I/O Module

MOXA 85M-3800-T I/O Module

$1,021.00 CAD
$1,021.00 CAD
Sale Sold out

Features and Benefits

  • 8 x Analog Input Channels
  • Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
  • Rugged and compact design for harsh environments
  • Expand the I/O and communication capabilities of your ioPAC 8600 or 8500 Series device
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)
  • Millisecond timestamp granularity for digital input and analog input
  • Supports sampling rates up to 40 kHz for analog input
  • Pre-recording for analog input data logging
  • -40 to 75°C operating temperature range
  • Compatible with ioPAC 8500 Series
View full details

Description

Moxa’s ioPAC 8500 Series 85M Modules can be installed in both ioPAC 8500 and ioPAC 8600 Series devices. Modules are available with DI/Os, AIs, Fast AIs, and serial interfaces, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. All 85M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and a portion of the EN 50155 specifications. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

You can also find the 85M-6810-T and 85M-3810-T models in the IOPAC 8500 SERIES (85M) MODULES.

· You can purchase the MOXA 85M-2600-T I/O Module, tailor-made for Factory Automation at a competitive price, and simplify your buying process by placing an order through our website.

Our dedicated team is always ready to assist you.

Data sheet

Specification

Modules: Interface
Ports: 8 x Analog Input Channels
Modules: Physical Characteristics
Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Weight: Under 0.08kg
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMI, EMS, Safety, Shock, Vibration, EN 50121-4, EN 50155
