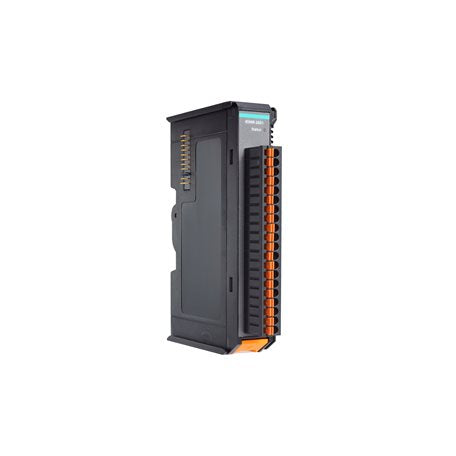

MOXA 45MR-7820 REMOTE I/O MODULE

MOXA 45MR-7820 REMOTE I/O MODULE

$123.00 CAD
$123.00 CAD
Sale Sold out

Features and Benefits

  • Easy tool-free installation and removal
  • Built-in LED indicators for IO channels
  • -10 to 60°C operating temperature range
  • 8 x field power output
View full details

Description

Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation, and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Data sheet

Specification

Field Potential Output Channels: 8
Potential Output Mode: 0 VDC, 12/24 VDC
Housing: Plastic
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Weight: 73.6 g (0.163 lb)
Installation: DIN-rail mounting
Strip Length: I/O cable, 9 to 10 mm
Wiring: 18 to 24 AWG
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 4000 meters
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 3 V
- IEC 61000-4-8 PFMF
Safety: UL 61010-2-201
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Hazardous Locations: ATEX, Class I Division 2
Green Product: RoHS, CRoHS, WEEE
MTBF: 256,886,914 hrs
Standards: Telcordia SR332
Warranty Period: 5 years
