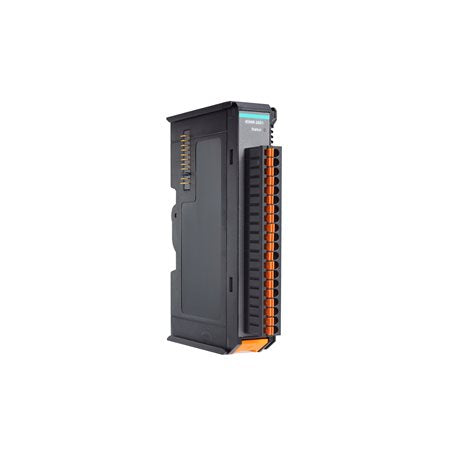

MOXA 45MR-4420 Remote IO Module

MOXA 45MR-4420 Remote IO Module

$393.00 CAD
$393.00 CAD
Sale Sold out

Features and Benefits

  • 4 x RS-232, RS-422, RS-485-2w Serial Ports
  • 4 x Analog Output Channels (0 to 10 V, 0 to 20 mA or 4 to 20 mA)
  • Plastic body design
  • DIN-rail mounting
  • 12 to 48 VDC input power range for system power
  • 12 to 24 VDC input power range for field power
  • -20 to 60°C operating temperature
View full details

Description

Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation, and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Easy Tool-Free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN rail. Removing all of the modules from a DIN rail is also easy using the latch and release tab.

You can also find the 45MR-4420-T, 45MR-3810, and 45MR-7820 models in the Smart Remote I/O.

Data sheet

Specification

Remote I/O Modules: Input/Output Interface
Digital Input Channels: -
Digital Output Channels: No
Analog Input Channels: 4
Thermocouple Channels: _
RTD Channels: No
Isolation: 3k VDC or 2k Vrms
Relays: No

Remote I/O Modules: General
MTBF: 1,450,453 hrs

Remote I/O Modules: Power Requirements
Power Connector: 44 mA @ 3.3 VDC
Power Consumption: -

Remote I/O Modules: Physical Characteristics
Housing: Plastic
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Installation: DIN-rail mounting
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Safety: UL 61010-2-201
