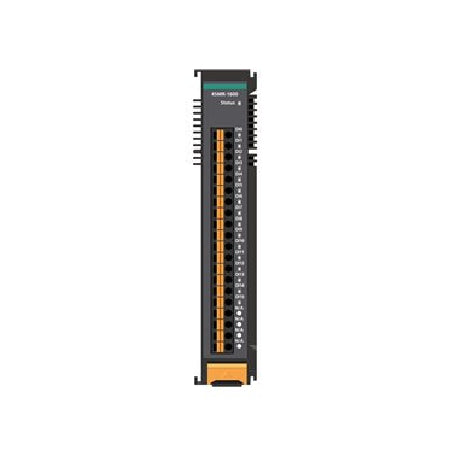

MOXA 45MR-2606-T REMOTE I/O MODULE

MOXA 45MR-2606-T REMOTE I/O MODULE

$268.00 CAD
$268.00 CAD
Sale Sold out

Features and Benefits

  • Easy tool-free installation and removal
  • Built-in LED indicators for IO channels
  • -40 to 75°C operating temperature range
  • 8 x Digital Input (PNP 12/24 VDC) and 8 x Digital Outputs (Source 12/24 VDC)
View full details

Description

Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Data sheet

Specification

Digital Input Channels: 8 x PNP 12/24VDC
Digital Output Channels: 8 x Source 12/24VDC
Analog Input Channels: No
Thermocouple Channels: No
RTD Channels: No
Isolation: 3k VDC or 2k Vrms
Relays: No
MTBF: 638,652 hrs
Power Consumption: 62.7 mA @ 3.3 VDC
Housing: Plastic
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Installation: DIN-rail mounting
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMI, EMS, Shock, Vibration
