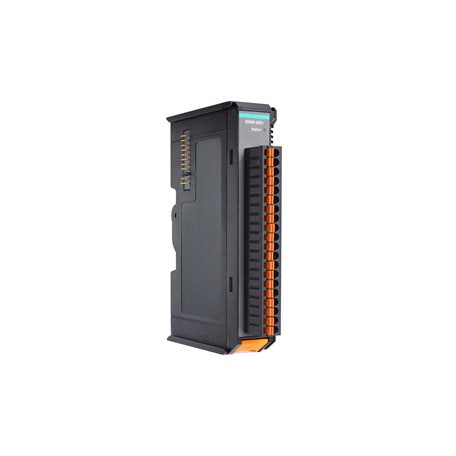

MOXA 45MR-2601-T REMOTE I/O MODULE

MOXA 45MR-2601-T REMOTE I/O MODULE

$269.00 CAD
$269.00 CAD
Sale Sold out

Features and Benefits

  • Easy tool-free installation and removal
  • Built-in LED indicators for IO channels
  • -40 to 75°C operating temperature range
  • 16 x Digital Outputs (Source 12/24VDC)
    View full details

    Description

    Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

    Data sheet

    Specification

    Digital Input Channels: No
    Digital Output Channels: 16
    Analog Input Channels: No
    Thermocouple Channels: No
    RTD Channels: No
    Isolation: 3k VDC or 2k Vrms
    Relays: No
    MTBF: 661,247 hrs
    Power Consumption: 59.4 mA @ 3.3 VDC
    Housing: Plastic
    Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
    Installation: DIN-rail mounting
    Storage Temperature: -40 to 85°C (-40 to 185°F)
    Ambient Relative Humidity: 5 to 95% (non-condensing)
    Standards and Certifications: EMC, EMI, EMS, Shock, Vibration
