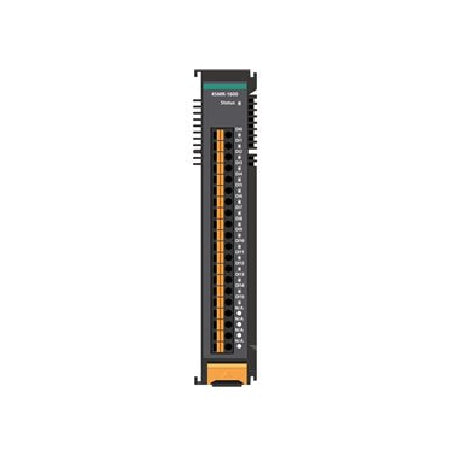

MOXA 45MR-1600-T REMOTE I/O MODULE

$266.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

16 x Digital Input Channels (PNP 12/24VDC)
DIN-rail Mounting
12 to 48 VDC input power range for system power
12 to 24 VDC input power range for field power
Plastic body design
-40 to 75°C operating temperature

View full details

Description

Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Data sheet

Specification

Digital Input Channels: 16
Digital Output Channels: No
Analog Input Channels: No
Thermocouple Channels: No
RTD Channels: No
Isolation: 3k VDC or 2k Vrms
Relays: No
MTBF: 661,247 hrs
Power Consumption: 59.4 mA @ 3.3 VDC
Housing: Plastic
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Installation: DIN-rail mounting
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMI, EMS, Shock, Vibration
