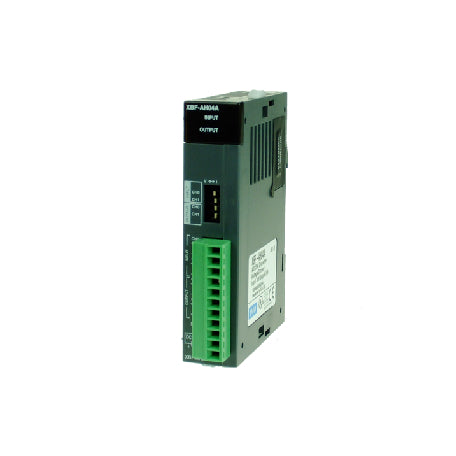

IMO XBF-AH04A XGB PROGRAMMABLE LOGIC CONTROLLER

IMO XBF-AH04A XGB PROGRAMMABLE LOGIC CONTROLLER

$761.00 CAD
$761.00 CAD
Sale Sold out

Features and Benefits

  • User friendly and easy to operate
  • I/O can be expanded to 384 points
  • Various monitoring functions inc. Network Diagnosis
  • Free IMO licensed programming software Contact Position Indicator
  • RoHS Compliant
View full details

Description

A wide range of expansion modules for use with the XGB range of Programmable Logic Controllers providing a maximum I/O of 384 points.

Data sheet

Specification

Input Output
Analogue Channel: 2 Channels, 2 Channels
Analogue Range:
DC 15V, DC 05V, DC 0~10V (input resistance: 1MΩ)
DC 420mA, DC 020mA (input resistance: 250Ω)
DC 15V, DC 05V, DC 0~10V (input resistance: 1MΩ)
DC 420mA, DC 020mA (input resistance: 250Ω)
Analogue Range Selection: XG5000 I/O Parameter and External Switch
Digital Data
Unsigned Value: 0 ~ 4000
Signed Value: -2000 ~ 2000
Precise Value:
100 ~ 500 (DC 1~5V)
0 ~ 500 (DC 0~5V)
0 ~ 1000 (DC 0~10V)
400 ~ 2000 (DC 4~20mA)
0 ~ 2000 (DC 0~20mA)
Percentile Value: 0 ~ 1000
Resolution (1 / 4000):
1.25mV (DC 15V, 05V)
2.5mV (DC 0~10V)
5µA (DC 420mA, 020mA)
Max. Conversion Speed: 1ms / Channel
Max. Absolute Input: ±15V, ±25mA
Accuracy: ±0.5% or less
Analogue Input Channels: 4 channel / module
Insulation Method: Photocoupler insulation b/w I/O terminal and power supply
Connection Terminal: 11 point terminal block
Occupied I/O Points: Fixed type: 64 points
Current Consumption (DC 24V): 120mA (DC 5V), 130mA (DC 24V)
