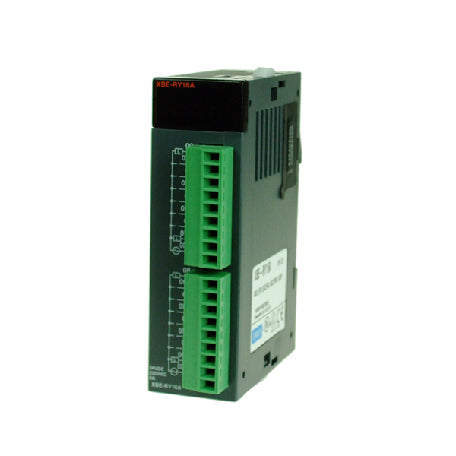

IMO XBE-RY16A PROGRAMMABLE LOGIC CONTROLLER RELAY

IMO XBE-RY16A PROGRAMMABLE LOGIC CONTROLLER RELAY

$483.00 CAD
$483.00 CAD
Sale Sold out

Features and Benefits

  • Number of relay outputs: 16
  • Galvanic insulation
  • Rated load voltage / current: DC24V 2A (Resistive load) / AC220V 2A (COSΨ = 1), 5A/COM
  • Common method: 8 point / COM
  • Screw terminals
  • Country of origin: South Korea
  • Custom Tariff Number: 85371091
View full details

Description

The relay module features 16 relay outputs, each offering galvanic insulation for enhanced safety. It is designed to handle a rated load voltage/current of DC24V 2A for resistive loads and AC220V 2A (COSΨ = 1), 5A/COM. The module utilizes a common method of 8-point/COM configuration, making it versatile for various applications. It is equipped with screw terminals for easy and secure connections.

Data sheet

Specification

Input Points: 16 Point
Insulation Method: Relay insulation
Rated Load Voltage / Current: 24V 2A (R load) / 220V 2A (COS0 =1), 5A / COM
Min. Load Voltage / Current: DC 5V / 1mA
Max. Load Voltage: AC 250V, DC 125V
Off Leakage Current: 0.1mA (AC 220V, 60Hz)
Max. On / Off Frequency: 3,600 times / hour
Mechanical: 20 million times or more
Electrical: Rated load voltage / current 10,000 times, AC 200V / 1.5A, AC 240V / 1A (COS0 =0.7), AC 200V / 1A, AC 240V / 0.5A (COS0 =0.35), DC 24V / 1A, DC 100V / 0.1A (L / R =7ms)
Response Time:
OFF to ON: 10ms or less
ON to OFF: 12ms or less
Common Method: 8 Point / COM
Internal Current Consumption: 420mA
External Connection Method: 9 pin terminal block connector / 8 Point
