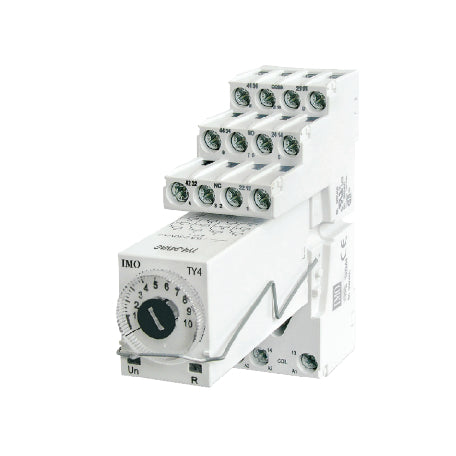

IMO TY4-24DC ELECTRONIC MINIATURE ON-DELAY TIMER

IMO TY4-24DC ELECTRONIC MINIATURE ON-DELAY TIMER

$110.00 CAD
$110.00 CAD
Sale Out of Stock

Features and Benefits

  • Plug-In Timer
  • Settings range from 0.1 sec. to 100 hours
  • 4 pole changeover contacts rated at 6A @ 240VAC
  • AC & DC supply versions available
  • LED indication for Time Range, Counting Time and Power On
  • Pin-out compatible with industry standard 4-pole plug-in relays
  • Sockets available for DIN Rail or PCB mounting
View full details

Description

MO's comprehensive range of DIN Rail mountable Timers delivers up-to-the minute technology. Ranging from the simple single-function through to the multi-function timer with display, these timers are being used daily in all types of applications and industries, and wide input voltage capability allow these products to be installed in applications across the world.

IMO's range of Panel Mount / Plug-In Timers provide users with a range of settings and funtionality and timing ranges between 0.1sec and 100hrs. Other key features include indication of time range, time up and power on timing. IMO Timers are always of the highest quality, and are backed with a Three Year Warranty.

Data sheet

Specification

Operating / Release Time (typical values): 10ms / 8ms
Electrical Life (AC1): >105 cycles @ 6A, 250VAC
Mechanical Life (Cycles): > 2 x 107
Dimensions (L x W x H): 27.5 x 21.2 x 62.5mm
Weight: 49g
Ambient Temperature:
Storage: -20°C to +85°C
Operating: -20°C to +55°C
Protection Rating: IP20
Shock Resistance (NO / NC): 10g / 5g
Vibration Resistance: 5g 10Hz to 150Hz
