IMO

IMO SRSI-24AC/DC SRSI RELAY SOCKET

Name: IMO SRSI-24AC/DC SRSI RELAY SOCKET
Availability: BackOrder

IMO SRSI-24AC/DC SRSI RELAY SOCKET

$14.38 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

For use with ETS & ETE Slimline Relays
Dielectric strength can reach 5000VAC
Insulation resistance = 1000MΩ
Built-in protection circuit can indicate the power status
Built-in protection circuit can protect the circuit
Built-in protection can expand the range of relay input voltage
Ensures secure retention and easy ejection of relays
Range of available accessories
RoHS compliant

View full details

Description

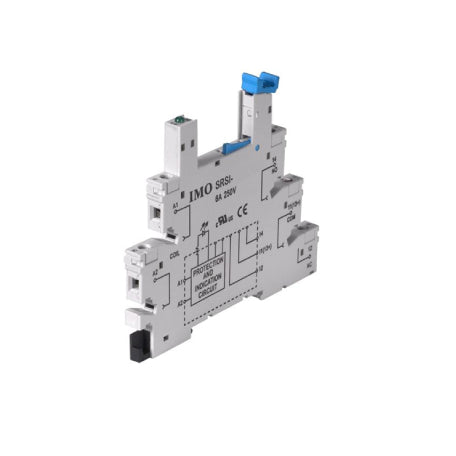

The SRSI-24AC/DC serves as a Relay Socket featuring screw terminals. It's crafted to seamlessly accommodate Imo ETS-series sub miniature power relays, rendering it a prime option for mounting on DIN rails.

Data sheet

Specification

Product: SRSI-24AC/DC
Nominal Voltage: 250VAC
Nominal Current: 6A
Ambient Temperature: -40°C to 70°C
Input Voltage: 12 to 24VAC/DC
Relay’s Applicable Rated Voltage: 12 to 24VDC
Polarity of Input Voltage: No Requirement
Screw Torque (Nm): 0.5
Wire Strip Length: 7mm
