IMO

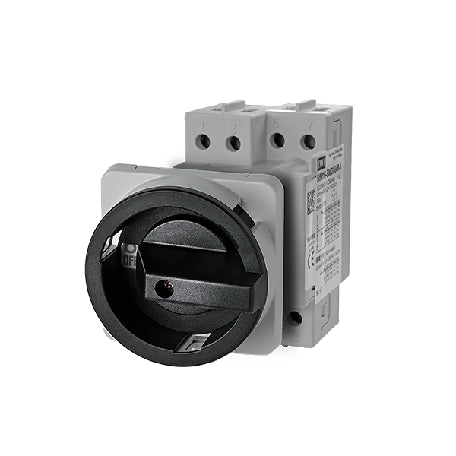

IMO SIM16-PM64R-4 IP66 NEMA 3R PANEL MOUNT DC SWITCH

$77.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Based on market-leading SI series design
Compact smaller size
Improved switching capacity
Extended mounting options
Guaranteed arc suppression (3ms typical)
Operator independent switching mechanism
Knife-edge contacts

View full details

Description

Data sheet

Specification

Handle Type: Lockable Rotary Handle
Lockable: Yes
Nema Rating: 3R
Number of Strings: 2
Mounting: Panel Mount
UL Current Rating (A): 16.00
Temperature Range (°C): -40 to +65°C
Number of Poles: 4P
IP Rating: IP66
Cable sizes (AWG): 16-10 AWG
Rated Current (A): 16A
Cable size (mm²): 1.5-10 mm²
