IMO

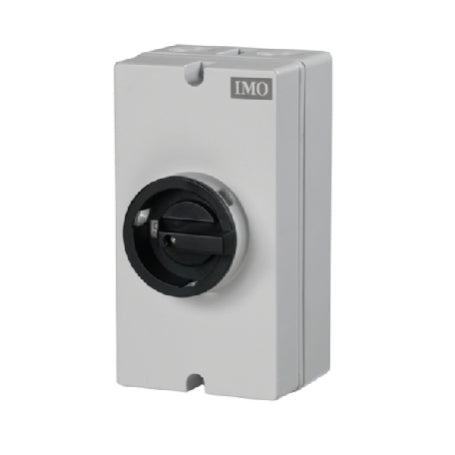

IMO SI25-PEL64R-4 IP67 NEMA 4X ENCLOSED DC SWITCH

IMO SI25-PEL64R-4 IP67 NEMA 4X ENCLOSED DC SWITCH

Regular price $221.00 CAD
Regular price Sale price $221.00 CAD
Sale Sold out

Features and Benefits

  • Market-leading design
  • 2, 4, 6 & 8 pole versions available
  • Max. rated current 85A@1000VDC (acc. to DC21B/DC-PV1 for SI55)
  • Range of mounting options
  • Guaranteed arc suppression (3ms typical)
  • Operator independent switching mechanism
  • Knife-edge contacts
View full details

Description

In solar installation, the DC isolator is like a
vehicle air-bag. You never know it really works
until you need it. So it’s good to know that the
IMO SI has now surpassed six million installed
units without a single recorded electrical failure.
Not surprising considering the product carries
all the most important approvals including
UL508i, IEC/EN 60947-1, UL 60947-1, IEC/EN
60947-3, UL 60947-4-1, CE, RCM and CCC. In
fact, the IMO SI solar isolator has been tested by
some of the most rigorous examiners and OEM
manufacturers in the world, passing with flying
colours every single time.
As ever, the SI range has a guaranteed arc
supression time of 3mS, in built arc cooling
chambers, operator independent switching
mechanism and Safe-Lock handle, making
it one of the safest DC isolators available, no
matter who uses it or how slowly they operate it.
Why take a risk on safety? Insist on
TRUE DC, contact us for a quotation
and see why the IMO SI TRUE DC
Isolator is the sensible choice for the PV
installer.

Specification

Handle Type: Lockable Rotary Handle
Lockable: Y
NEMA Rating: 4X
Number of Strings: 2
Mounting: Enclosed
UL Current Rating (A): 25.00
Temperature Range: -40 to +45°C
Number of Poles: 4P
IP Rating: IP67
Cable Sizes (AWG): 12-10AWG
Rated Current (A): 25A
Cable Size (mm²): 4-16mm²
