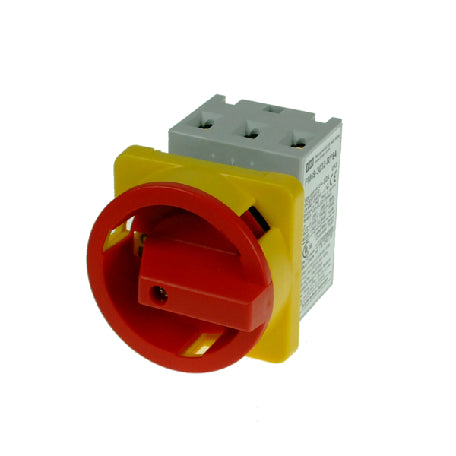

IMO PM69-3032-RY64 PANEL SOLAR MOUNT 3 POLE ISOLATOR

Rated thermal current Ith open: 32 A
Rated thermal current Ith enclosed: 32 A
Rated insulation voltage Ui: 690 V
Rated operational current Ie AC21A: 32 A
Making capacity Ieff 3x380-440V: 220 A
Breaking capacity 3x220-240V: 200 A
Disconnection property performed up to: 690 V
Motor switch AC3 3x400V: 23 A
Motor switch AC3 3x220-240V: 5.5 kW
Direct switching of single motors 3x380-440V: 11 kW
Main switch AC23 3x400V: 25 A
Motor switch AC23A 3x220-240V: 7.5 kW
Main switch AC23B 3x380-440V: 12.5 kW
Safety switch 3x660-690V: 11 kW
Rated conditional short-circuit current 400V: 10 kAeff
Max. fuse size gL (gG): 40 A
Mechanical life x103: 200
Rated short-time withstand current (1 sec. current): 400 A
Temperature Range open: -40°C to +90°C
Temperature Range enclosed: -40°C to +40°C
Temperature Range storage: -50°C to +90°C
Power loss per pole AC21 = Ith P/pole [W]: 0.824 W
Power loss per pole AC21 = Ith R/pole [mΩ]: 0.805 mΩ
Cable cross sections mm2 solid or stranded: 4 - 50 mm2
Cable cross sections mm2 flexible: 4 - 16 mm2
Size of terminal screw: M6
Tightening torque Nm: 1.7 - 4.5 Nm
Rated thermal current Ith for auxiliary contacts: 10 A
Switching capacity AC15 220-240V: 2.5 A
Switching capacity AC15 380-440V: 1.5 A
Rated conditional short-circuit current for auxiliary contacts: 3 kAeff
Max. short circuit protection gL (gG) for auxiliary contacts: 10 A
Cable cross sections mm2 for auxiliary contacts: 0.75 - 2.5 mm2
Solid or stranded AWG for auxiliary contacts: 14 - 12 AWG
Flexible (+ multicore cable end) mm2 for auxiliary contacts: 0.75 - 2.5 mm2 (1.5 mm2)
AWG for auxiliary contacts: 18 - 14 AWG
