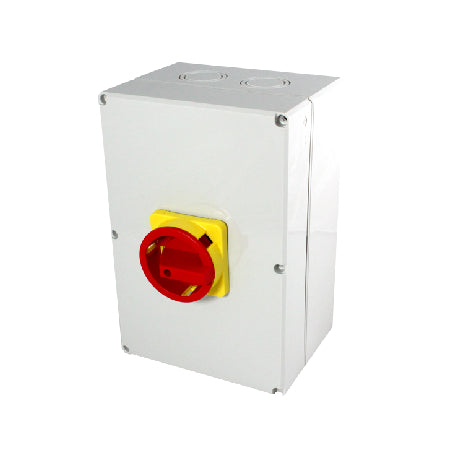

IMO PE69-8032 8 POLE, 32A ISOLATOR

IMO PE69-8032 8 POLE, 32A ISOLATOR

$289.00 CAD
$289.00 CAD
Sale Sold out

Features and Benefits

  • 3, 4, 6 & 8 Pole Versions
  • On Load 10A - 125A
  • Red/Yellow or Black Handles
  • Up to 3 Padlock Positions
  • IP66 - NEMA 4X (DM69 IP40)
  • Enclosed, DIN Rail, Base or Panel Mount Versions
  • Lightweight Extension Shafts (100 - 400mm)
  • Side Mounted Auxiliary Contacts
  • UL Approved
View full details

Description

Providing solutions for the most simple to the most complex applications. Manufactured from the highest-quality materials, our control and switchgear product range offers unparalleled efficiency, performance and reliability.

Data sheet

Specification

Handle Type: Enclosed / Interlocked Handle
Lockable: Y
Nema Rating: 4X
UL Current Rating (A): 32.00
Temperature Range °C: -40 to +40°C
Rated Voltage (V): 400V
Number of Poles: 8P
IP Rating: IP66
Cable sizes (AWG): 20-8AWG
Rated Current (A): 32A
Cable size (mm²): 0.5-10mm²
