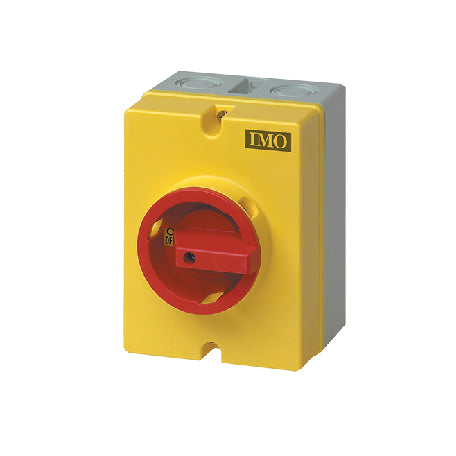

IMO PE69-3032 3 POLE 32A ISOLATOR

IMO PE69-3032 3 POLE 32A ISOLATOR

$84.00 CAD
$84.00 CAD
Sale Sold out

Features and Benefits

  • 3, 4, 6 & 8 Pole Versions
  • On Load 10A - 125A
  • Red/Yellow or Black Handles
  • Up to 3 Padlock Positions
  • IP66 - NEMA 4X (DM69 IP40)
  • Enclosed, DIN Rail, Base or Panel Mount Versions
  • Lightweight Extension Shafts (100 - 400mm)
  • Side Mounted Auxiliary Contacts
  • UL Approved
View full details

Description

Isolators are suited to a huge range of applications. Regular switching requirements are more than adequately handled by our proven "Standard" 3 or 4 pole devices, while dedicated designs are available for switching DC loads, PV applications and Battery Banks - see our Solar Isolators.

IMO offers a comprehensive range of high-quality AC Isolators with switching capabilities ranging from 20A to 125A, both in 3 and 4 Poles. Within the range, there are a number of different mounting types including Panel Mount, DIN Rail Mount and Enclosed, plus there are a range of handles and extendable shafts to suit most applications, as well as other accessories to compliment the range. The handles can be locked in the OFF position for peace of mind when maintenance is taking place.

Data sheet

Specification

Rated thermal current Ith open: 32 A
Rated thermal current Ith enclosed: 32 A
Rated insulation voltage Ui: 690 V
Rated operational current Ie AC21A: 32 A
Making capacity Ieff 3x380-440V: 220 A
Breaking capacity 3x220-240V: 200 A
Disconnection property performed up to: 690 V
Motor switch AC3 3x400V: 23 A
Motor switch AC3 3x220-240V: 5.5 kW
Direct switching of single motors 3x380-440V: 11 kW
Main switch AC23 3x400V: 25 A
Motor switch AC23A 3x220-240V: 7.5 kW
Main switch AC23B 3x380-440V: 12.5 kW
Safety switch 3x660-690V: 11 kW
Rated conditional short-circuit current 400V: 10 kAeff
Max. fuse size gL (gG): 40 A
Mechanical life x103: 200
Rated short-time withstand current (1 sec. current): 400 A
Temperature Range open: -40°C to +90°C
Temperature Range enclosed: -40°C to +40°C
Temperature Range storage: -50°C to +90°C
Power loss per pole AC21 = Ith P/pole [W]: 0.824 W
Power loss per pole AC21 = Ith R/pole [mΩ]: 0.805 mΩ
Cable cross sections mm2 solid or stranded: 4 - 50 mm2
Cable cross sections mm2 flexible: 4 - 16 mm2
Size of terminal screw: M6
Tightening torque Nm: 1.7 - 4.5 Nm
Rated thermal current Ith for auxiliary contacts: 10 A
Switching capacity AC15 220-240V: 2.5 A
Switching capacity AC15 380-440V: 1.5 A
Rated conditional short-circuit current for auxiliary contacts: 3 kAeff
Max. short circuit protection gL (gG) for auxiliary contacts: 10 A
Cable cross sections mm2 for auxiliary contacts: 0.75 - 2.5 mm2
Solid or stranded AWG for auxiliary contacts: 14 - 12 AWG
Flexible (+ multicore cable end) mm2 for auxiliary contacts: 0.75 - 2.5 mm2 (1.5 mm2)
AWG for auxiliary contacts: 18 - 14 AWG
