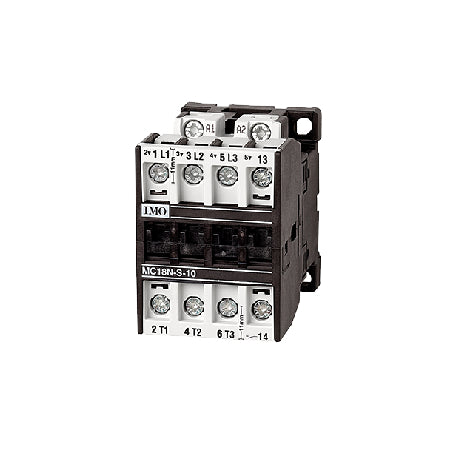

IMO MC18N-S-10110AC 3 POLE CONTACTOR

IMO MC18N-S-10110AC 3 POLE CONTACTOR
$93.00 CAD
$93.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Up to 22A AC3
  • Up to 32A AC1
  • DIN Rail Mounting
  • International Approvals
  • Data according to IEC 947 / EN 60947
View full details

Description

Data sheet

Specification

AC3 Current Rating: 18.00
Auxiliary Contacts: NO
Coil Voltage: 110.00
AC1 Current Rating: 32
Temperature Range °C: -40 to +60°C
Number of Poles: 3P
Cable sizes (AWG): 18 - 10AWG
Cable size (mm²): 1.0 - 4.0mm²
Rated Power (kW): 7.50
