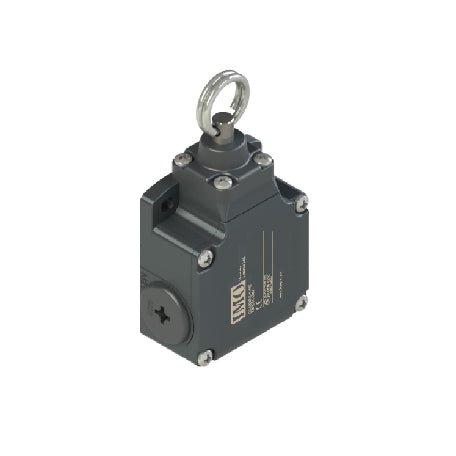

IMO LLC5A76 LIMIT STANDARD SWITCH

IMO LLC5A76 LIMIT STANDARD SWITCH

$73.00 CAD
$73.00 CAD
Sale Sold out

Features and Benefits

  • Metal or Polymer housing, one or three conduit entries
  • Protection degree IP67
  • 19 contact blocks available
  • 28 actuators available
  • M12 assembled connector versions
  • Silver contacts gold plated versions
  • IP67 according to EN 60529
  • Bifurcated contacts
  • Double-break contacts with electrically separate NO and NC
  • Removeable contact block for ease of wiring
  • RoHS 2 compliant



View full details

Description

Always consistent with its innovation and the company quality targets, IMO Precision Controls Ltd introduces three new prewired switches series
provided with innovative and unique characteristics. These products series are the result of four years research, development and testing; they fulfil
new solutions requested by the market and they include more than twenty years company experience in the position switches sector. That’s why we
are proud to introduce the new MA, MB and PA in the IMO Precision Controls range.

Data sheet

Specification

Rated insulation voltage (Ui): 500 Vac
400 Vac (for contact blocks C2, C11, C12, C20, C21, C22, C33, C34)
Conventional free air thermal current (Ith): 10 A
Protection against short circuits: type aM fuse 10 A 500 V
Rated impulse withstand voltage (Uimp): 6 kV
4 kV (for contact blocks C20, C21, C22, C33, C34)
Protection degree of the housing: IP67
MV terminals (screw terminals)
Pollution degree 3
Utilization category: AC15
Operating voltage (Ue): 400 Vac (50 Hz)
Operating current (Ie): 3 A
Forms of the contact element: Za, Zb, Za+Za, Y+Y, X+X, Y+Y+X, Y+Y+Y, Y+X+X
Positive opening of contacts on contact blocks C5, C6, C7, C9, C11, C13, C14, C16, C18, C20, C21, C22, C33, C34
In conformity with standards: EN 60947‑1, EN 60947‑5‑1+ A1:2009, fundamental requirements of the Low Voltage Directive 2006/95/EC.
