IMO

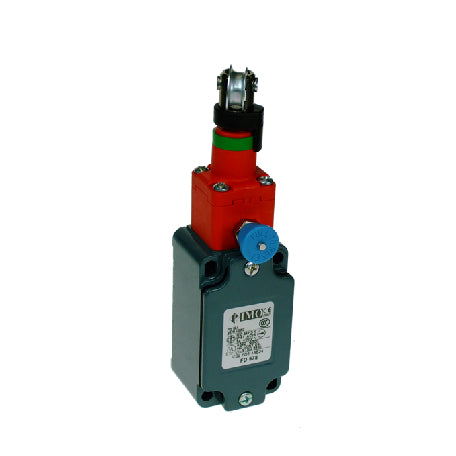

IMO LDC9RRS LIMIT STANDARD SWITCH

$94.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Metal or Polymer housing, one or three conduit entries
Protection degree IP67
19 contact blocks available
28 actuators available
M12 assembled connector versions
Silver contacts gold plated versions
IP67 according to EN 60529
Bifurcated contacts
Double-break contacts with electrically separate NO and NC
Removeable contact block for ease of wiring
RoHS 2 compliant

View full details

Description

Data sheet

Specification

For safety applications up to: SIL 3 acc. to EN 62061, PLC e acc. to EN ISO 13849-1
Safety parameters: 2,000,000 for NC contacts
Service life: 20 years
Ambient temperature: -25... +80°C
Max. actuation frequency: 1 cycle /6s
Mechanical endurance: 1 million operating cycles
Max. actuation speed: 0.5 m/s
Min. actuation speed: 1 mm/s
