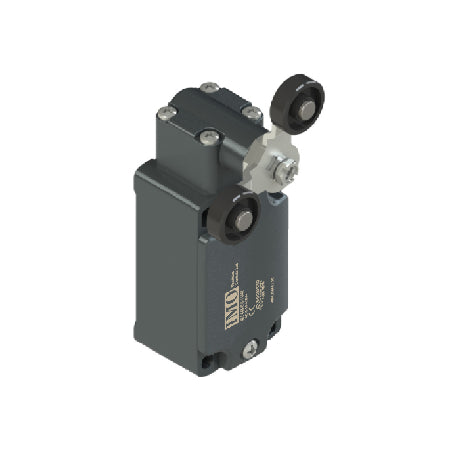

IMO LDC5A41 POSITION SWITCH

IMO LDC5A41 POSITION SWITCH
$98.00 CAD
$98.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Metal or Polymer housing, one or three conduit entries
  • Protection degree IP67
  • 19 contact blocks available
  • 28 actuators available
  • M12 assembled connector versions
  • Silver contacts gold plated versions
  • IP67 according to EN 60529
  • Bifurcated contacts
  • Double-break contacts with electrically separate NO and NC
  • Removeable contact block for ease of wiring
  • RoHS 2 compliant
View full details

Description

Data sheet

Specification

Rated insulation voltage (Ui): 500 Vac, 400 Vac (for contact blocks C2, C11, C12, C20, C21, C22)
Thermal current (Ith): 10 A
Protection against short circuits: fuse 10 A 500 V type aM
Rated impulse withstand voltage (Uimp): 6 kV, 4 kV (for contact blocks C20, C21, C22)
Protection degree: IP67
MV terminals: screw clamps
Pollution degree: 3
Utilization category: AC15
Operation voltage (Ue): 400 Vac (50 Hz)
Operation current (Ie): 3 A
Forms of the contact element: Za, Zb, Za+Za, Y+Y, X+X, Y+Y+X, Y+Y+Y, Y+X+X
Positive opening of contacts: on contact block C5, C6, C7, C9, C11, C13, C14, C16, C18, C20, C21, C22
In conformity with standards: EN 60947-1, EN 60947-5-1+A1:2009, fundamental requirements of the Low Voltage Directive 2006/95/CE
