IMO

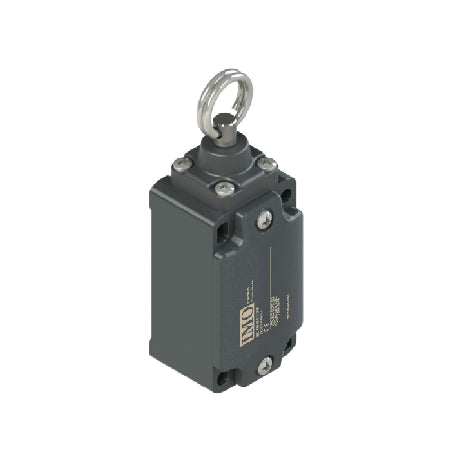

IMO LDC2A76 LIMIT STANDARD SWITCH

IMO LDC2A76 LIMIT STANDARD SWITCH

$91.00 CAD
$91.00 CAD
Sale Sold out

Features and Benefits

  • Bifurcated contacts for low resistance and high reliability
  • Over 3,000 configurations
  • Metal or plastic housing available
  • Range of micro switches available
View full details

Description

Always consistent with its innovation and the company quality targets, IMO Precision Controls Ltd introduces three new prewired switches series
provided with innovative and unique characteristics. These products series are the result of four years research, development and testing; they fulfil
new solutions requested by the market and they include more than twenty years company experience in the position switches sector. That’s why we
are proud to introduce the new MA, MB and PA in the IMO Precision Controls range.

Data sheet

Specification

Rated Insulation Voltage (Ui):
Standard: 500 Vac
For specific contact blocks (C2, C11, C12, C20, C21, C22): 400 Vac
Thermal Current (Ith): 10 A
Protection Against Short Circuits: Fuse 10 A, 500 V type aM
Rated Impulse Withstand Voltage (Uimp):
Standard: 6 kV
For contact blocks (C20, C21, C22): 4 kV
Protection Degree: IP67
MV Terminals: Screw clamps
Pollution Degree: 3
Electrical Ratings
Utilization Category: AC15
Operation Voltage (Ue): 400 Vac (50 Hz)
Operation Current (Ie): 3 A
Contact Forms
Forms of the Contact Element:
Za, Zb, Za+Za, Y+Y, X+X, Y+Y+X, Y+Y+Y, Y+X+X
Positive Opening of Contacts: Available on contact blocks C5, C6, C7, C9, C11, C13, C14, C16, C18, C20, C21, C22
Standards Compliance
Conforms to:
EN 60947-1
EN 60947-5-1 + A1:2009
Fundamental requirements of the Low Voltage Directive 2006/95/CE
