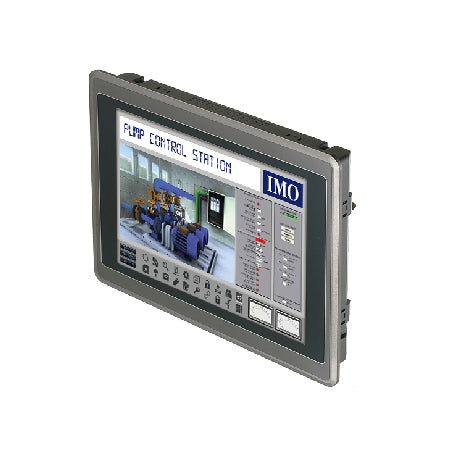

IMO IV210M-SEAP ADVANCED HMI-M SERIES

IMO IV210M-SEAP ADVANCED HMI-M SERIES

Regular price $2,832.00 CAD
Regular price Sale price $2,832.00 CAD
Sale Sold out

Features and Benefits

  • In-built FTP functionality
  • Up to 5 x serial ports inc. screwless terminals
  • In-built Ethernet port for remote connectivity
  • 2 x USB ports (1 x USB A, 1 x USB B)
  • Remote monitoring using VNC (web) server
  • Data logging
  • In-built offline software simulation
  • Aluminium bezel versions available*
  • IP66 rated
  • Email Support
  • IOT Support - IDCS & MQTT
  • Android application
View full details

Description

iView is a range of advanced Human Machine Interface (HMI) screens that provide customers with an effective, yet competitive means to view and control a process. Inbuilt to all iView HMI's is a selection of networking ports that supports over 480 common industry protocols and is available in a high-resolution display from a 4.3" to a 15.0" colour TFT colour touch screen that supports up to 65k of colour and shades.

Standard features include data and alarm logging, internet remote control and monitoring, built-in script logic and graphics library, username and password manager, automated event processing and scheduling. The high resolution, back-lit LED display will render and animate interactive graphics effectively and is programmable using IMO's free and unlimited iView configuration software.

Specification

Size: 10.4”
Resolution / Colours: 1024 x 600 / 65K
System Memory: 64 MB
In-built Storage Memory: 64 MB
Battery Backup Memory: 128 KB
COM 1: RS232 (5-pin terminal) RS232
COM 2: RS485 (5-pin terminal) RS422/485 (DB9)
COM 3: RS485 (5-pin terminal) RS485 (DB9)
COM 4: RS485 (5-pin terminal)
COM 5: n/a RS485 (5-pin terminal)
USB: 2
Real Time Clock: Built In
Certification: UL, CE, cUL, FCC, NEMA 4X
Ratings: IP66
Voltage Ratings: 24VDC ±10% Isolated
Power Ratings: 20 W
Operating Temperature: -10°C to +60°C
Net Weight: 1.1kg
