Features and Benefits

  • In-built FTP functionality
  • Up to 5 x serial ports inc. screwless terminals
  • In-built Ethernet port for remote connectivity
  • 2 x USB ports (1 x USB A, 1 x USB B)
  • Remote monitoring using VNC (web) server
  • Data logging
  • In-built offline software simulation
  • Aluminium bezel versions available*
  • IP66 rated
  • Email Support
  • IOT Support - IDCS & MQTT
  • Android application
View full details

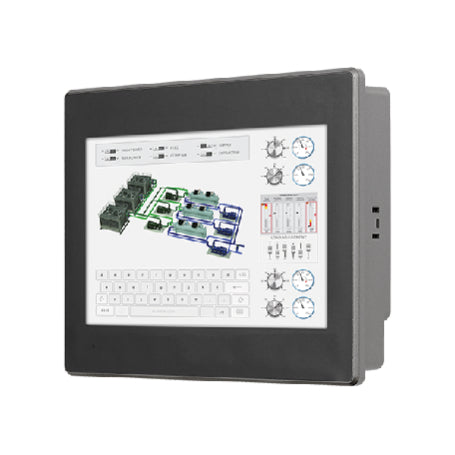

The IV207M-SEAP is a versatile solution tailored for a wide range of applications, integrating advanced connectivity and functionality. It comes equipped with in-built FTP functionality to facilitate seamless file transfers and up to five serial ports featuring screwless terminals for secure connections. Additionally, the device incorporates an in-built Ethernet port, enabling remote connectivity, and provides two USB ports (one USB A, one USB B) for enhanced connectivity options.

Remote monitoring capabilities are facilitated through a VNC (web) server, while support for data logging allows users to record and analyze critical information. Moreover, the device features in-built offline software simulation for convenient testing and development purposes. Available in versions with aluminium bezels for added durability, the device boasts an IP66 rating, ensuring protection against dust and water ingress and rendering it suitable for a variety of environments.

It also includes email support for seamless communication and notifications, and supports IDCS & MQTT for IoT connectivity and integration. Additionally, users can benefit from an Android application provided for easy access and control.


Part Number IV207M-SEAP
Size 7.0”
Resolution / Colours 800 x 480 / 65K 1
System Memory 64 MB
In-built Storage 64 MB
Battery Backup 128 KB
COM 1 RS232 (5-pin terminal) RS232 (DB9)
COM 2 RS485 (5-pin terminal) RS422/485 (DB9)
COM 3 RS485 (5-pin terminal) RS485 (DB9)
COM 4 RS485 (5-pin terminal) RS485 (5-pin terminal)
COM 5 n/a RS485 (5-pin terminal) RS485 (5-pin terminal)
Real Time Clock Built In
Certification UL, CE, cUL, FCC, NEMA 4X
Ratings IP66
Voltage Ratings 24VDC ±10% Isolated
Power Ratings 20 W
Operating Temperature -10°C to +60°C
Net Weight 0.55kg
