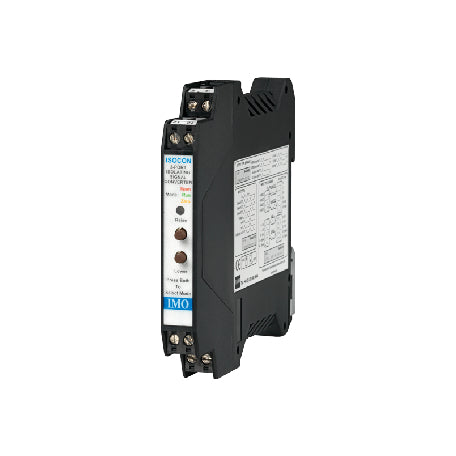

IMO ISOCON-6 ISOLATING SIGNAL CONVERTER

IMO ISOCON-6 ISOLATING SIGNAL CONVERTER

Regular price $492.00 CAD
Regular price Sale price $492.00 CAD
Sale Sold out

Features and Benefits

  • Universal Input/Output - User Selectable
  • Full 3-Port Isolation
  • Wide Range AC or DC Supply
  • Isolated Transmitter Supply
  • Very High Accuracy, Low Cost
  • Only 12.5mm wide on DIN Rail
View full details

Description

For over forty years, IMO has manufactured and delivered high quality industrial control and automation products to meet current trends and technologies while providing value and performance to our customers. Our Automation product range features Programmable Logic Controllers (PLC), Human Machine Interfaces (HMI), All-in-One PLC Controllers, Variable Speed AC Drives, Industrial Signal and Conversion products, Sensors, Mechanical Limit Switches as well as a comprehensive Industrial Power Supply series of products.

Whether an IMO product is used a new application or as a high-quality replacement, our industry-leading warranty, no-charge programming software and unparalleled customer support provides customers with assurance of quality and reliability they can trust.

Specification

Parameter Minimum: 12V, Typ.: 24V, Maximum: 36VDC/32VAC
Supply Current (mA): 45, Typ.: 85
Input Impedance (Volt): 1MΩ
Input Impedance (mA): 15Ω
Volt Drop (mA input): 0.3, Maximum: 0.15
Output Linearity Error: ±0.01%, Maximum: ±0.05%
Temperature Coefficient: ±50ppm/ºC
Time Constant (10-90%): 25ms (fast), Maximum: 60ms (normal)
Operating Ambient: 0ºC, Maximum: 55ºC
Relative Humidity: 0%, Maximum: 90%
Isolation Voltage*: 1kV
Surge Voltage: 2.5kV for 50μs
