IMO

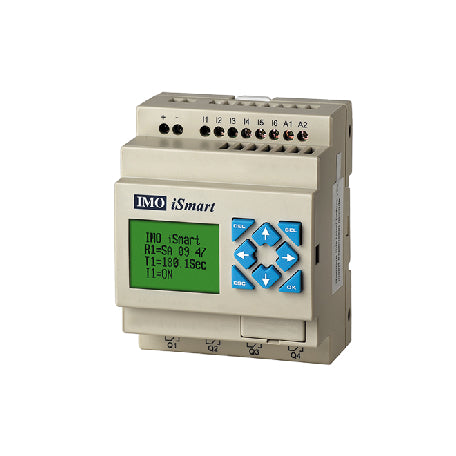

IMO iSMART SMT-EA-R10-V3 INTELLIGENT RELAY

$277.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Digital, Analogue & Temperature Inputs
Relay, Transistor & Analogue Outputs
Powerful Control Logic in Ladder or Functional Block Diagram
Available with or without Text HMI Screen
Programmable Function Keys
PID Control (up to 30 Loops)
Maths Functions
Retentive Data Registers
High Speed Inputs & PWM Outputs
Link function
Multi-Language Selectable
Expansion Modules for More I/O

View full details

Description

Data sheet

Specification

Operating Temperature: -10 to +60°C
Storage Temperature: -40 to +70°C
Humidity: 5 - 90% RH no frost
Vibration: IEC60068-2-6 (0.075mm Amplitude / 1G Acceleration)
Impact Resistance: IEC60068-2-28 (15g peak, 1ms duration)
Installation: IP20, Direct or DIN Rail Mount (TS35 - 35mm)
Noise Resistance: ESD: ±4kV, Air Discharge: ±8kV
RTC Clock Accuracy Max.: 6 minutes/month, 1 Farad Capacitor for 200hr run-on after power-down
Program Size: 1200 Steps (300 Lines of Ladder), 260 Function Blocks
