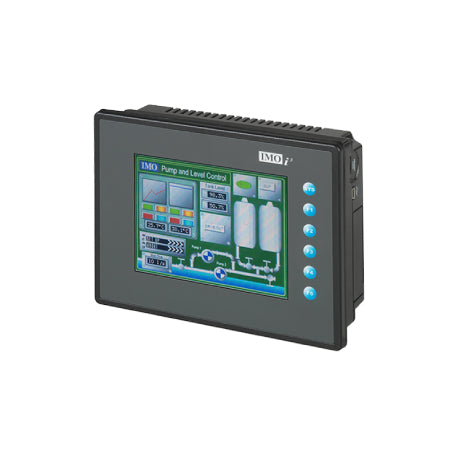

IMO I3CX12Z/00000-SEHF MINI INTELLIGENT CONTROL STATION

IMO I3CX12Z/00000-SEHF MINI INTELLIGENT CONTROL STATION

$3,126.00 CAD
$3,126.00 CAD
Sale Sold out

Features and Benefits

  • 5.7” TFT Colour Touch Screen Display
  • 65,535 Colours, QVGA (640 x 480)
  • MicroSD™ Data Storage up to 32GB
  • Real Time Clock
  • 1 CAN Port, 3 RS-232 / RS-485
  • 1 Integral Ethernet Port
  • USB Port for Programming
  • USB Port for Flash Drives up to 2TB
  • Addressable Function Keys
  • 1MB RAM (Program), 27MB (Graphical)
  • IP65 (NEMA 4)
  • 10 - 30 VDC Power Supply
  • Free Configuration Software
  • Remote I/O Communication
  • Optional - Modem (SMS, GSM, GPRS)
  • Online programming
  • Supports i3
View full details

Description

i3CX Intelligent Control Station. As with all models of the i3 Series, the i3CX brings you a combination of HMI and PLC functionality in a compact and handy unit, that offers MicroSD data storage, a real-time clock, IP65 (NEMA 4X) protection rating and free configuration software.

The i3CX has a larger 640x480 (5.7") TFT colour touchscreen display capable of displaying 65,535 colours, with 5 addressable function keys, up to 24 digital inputs, up to 6 analogue inputs, up to 4 analogue outputs and up to 16 digital outputs. Supports i3RMI webserver functionality and online programming. The i3CX is UL and cUL approved.

Data sheet

Specification

Required Power (Steady State): 420mA @ 12VDC / 230mA @ 24VDC
Required Power (Inrush): 25A for <1ms @ 24VDC DC Switched
Primary Voltage Range: 10-30VDC
Relative Humidity: 5 to 95% Non-Condensing
Clock Accuracy: +/-20 ppm Max. at 25°C (+/-1 minute per month)
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +60°C
Weight: 0.70kg (without I/O)
Approvals: cUL, UL, CE, FCC
