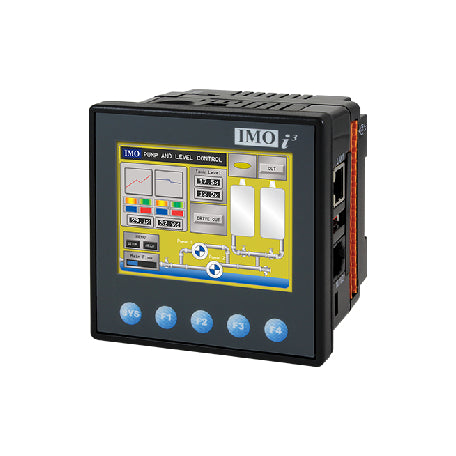

IMO I3CM12Y/00000-SEHF MINI INTELLIGENT CONTROL STATION

IMO I3CM12Y/00000-SEHF MINI INTELLIGENT CONTROL STATION

Regular price $2,542.00 CAD
Regular price Sale price $2,542.00 CAD
Sale Sold out

Features and Benefits

  • 3.5” TFT Colour Touch Screen Display
  • 65,535 Colours, QVGA (320 x 240)
  • MicroSD™ Data Storage up to 32GB
  • Real Time Clock
  • 1 CAN Port, 1 RS-232, 1 RS-485
  • 1 Integral Ethernet Port
  • USB Port for Programming
  • USB Port for Flash Drives up to 2TB
  • Addressable Function Keys
  • 1MB RAM (Program), 27MB (Graphical)
  • IP65 (NEMA 4)
  • 10 - 30 VDC Power Supply
  • Free Configuration Software
  • Remote I/O Communication
  • Optional - Modem (SMS, GSM, GPRS)
  • Online programming
  • Supports i3
  • RMI Webserver Functionality
View full details

Description

i3CM Intelligent Control Station. As with all models of the i3 Series, the i3CM brings you a combination of HMI and PLC functionality in a compact and handy unit, that offers MicroSD data storage, a real-time clock, IP65 (NEMA 4X) protection rating and free configuration software.

The i3CM has a 320x240 (3.5") TFT colour touchscreen display capable of displaying 65,535 colours, with 4 addressable function keys, up to 24 digital inputs, up to 6 analogue inputs, up to 4 analogue outputs and up to 16 digital outputs. Supports i3RMI webserver functionality and online programming. The i3CM is FCC, UL and cUL approved.

Specification

Required Power (Steady State): 190mA @ 12VDC / 95mA @ 24VDC
Required Power (Inrush): 2A for <1ms @ 24VDC DC Switched
Primary Voltage Range: 10-30VDC
Relative Humidity: 5 to 95% Non-Condensing
Clock Accuracy: +/-20 ppm Max. at 25°C (+/-1 minute per month)
Operating Temperature: -10°C to +60°C
Storage Temperature: -30°C to +70°C
Weight: 0.34kg (without I/O)
Approvals: cUL, UL, CE, FCC
