Manufacturers Automation Inc.

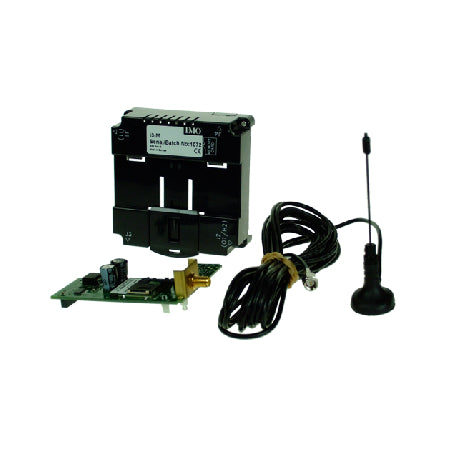

IMO I3-MA-25G 3G MODEM COM MODULE

IMO I3-MA-25G 3G MODEM COM MODULE

Regular price $1,144.00 CAD
Regular price Sale price $1,144.00 CAD
Sale Sold out

Features and Benefits

  • Provides for all GSM/GPRS authentication
  • Provides encryption,
  • Provides frequency hopping algorithms.
  • GPRS Coding Schemes CS1-CS4 supported
  • Multi-Slot Class 10 (4RX/2TX, Max 5 Slots)
View full details

Description

The modem utilises the same internal communications channel (UART) as the
MJ1 serial port; thus, enabling the modem deactivates the MJ1 serial port.
However, support is provided to select which device (or port) is currently active.
i3CMini, i3CX, i3DX & i3E provide a COM port to support the modem thereby
leaving the MJ1 port free for other use.

Specification

Antenna Interface: Female SMA
Frequency Bands: GSM | GPRS | EDGE: 850, 900, 1800, 1900; UMTS | HSPA: 800/850*, 900, AWS1700, 1900, 2100 MHz
GSM / GPRS Supported
Provides for all GSM/GPRS authentication, encryption, and frequency hopping algorithms.
GPRS Coding Schemes CS1-CS4 supported. Multi-Slot Class 10 (4RX/2TX, Max 5 Slots).
Regulatory Agency Approvals: CE, GCF (Europe), FCC, PTCRB, IC (North America), RoHS Compliant
UMTS/HSPA+: 800/850MHz, 900MHz, 1700AWS MHz, 1900MHz, 2100MHz
Quad Band GSM | GPRS | EDGE supported
SIM 1V8 / 3 V Mini Subscriber Identity Module (SIM) Compatible
Size (L x W): 28.2 x 28.2 x 2.2 mm
Weight: Less than 80 grams
Extended Temp. Range: -40°C to 85°C
Relative Humidity: 5 - 95%
Air Pressure (Altitude): 70 kPa to 106 kPa (-400m to 3000m)
