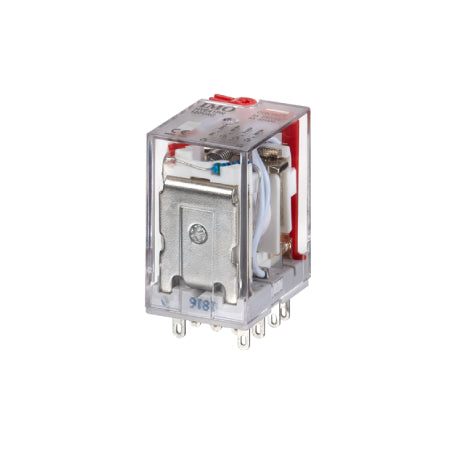

IMO HYE41PN24DC MINIATURE INTERMEDIATE POWER RELAY

Contact Arrangement: 2P / 3P 4P
Contact Resistance: 50mΩ max. (at 1A 24VDC)
Contact Material: AgSnO2
Contact Rating:10A 250VAC / 30VDC, 5A 250VAC / 30VDC
Max. Switching Current: 10A, 5A
Max. Switching Voltage: 250VAC / 30VDC
Max. Switching Power: 2500VA / 300W
1250VA / 150W
Mechanical Life: 1 x 10^7 OPS
Electrical Life: 1 x 10^5 OPS
Insulation Resistance: 1000mΩ (at 500VDC)
Dielectric Strength:Between Coil & Contacts: 1500VAC 1min
Between Open Contacts: 1000VAC 1min
Between Contact Sets: 1500VAC 1min
Operate Time (at nominal voltage): 25ms max.
Release Time (at nominal voltage): 25ms max.
Ambient Temperature: -40°C to 70°C
Humidity: 95% RH, +40°C
Vibration Resistance: 10Hz to 55Hz 1.5mm DA
Shock Resistance:
Functional: 100m/s^2
Destructive: 1000m/s^2
Termination (8 Pin): PCB, Plug-In
Unit Weight: Approx. 37.0g
Construction: Dust Protected
