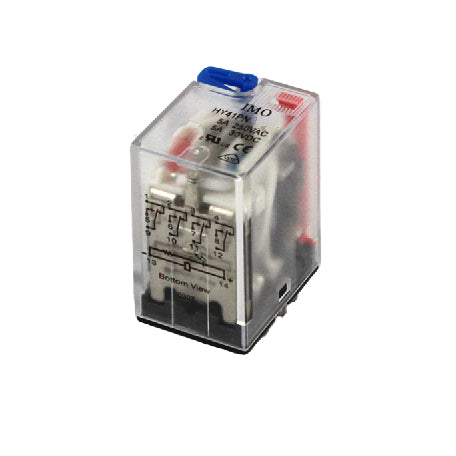

IMO HY41PN12DC MINIATURE INTERMEDIATE POWER RELAY

IMO HY41PN12DC MINIATURE INTERMEDIATE POWER RELAY

Regular price $17.00 CAD
Regular price Sale price $17.00 CAD
Sale Sold out

Features and Benefits

  • 7A switching capabilities (2C, 3C)
  • 1.5kV dielectric strength (between coil and contacts)
  • Various terminals, test button available
  • Different sockets available
  • 2 to 4 pole configurations
  • Outline dimensions: 28 x 21.5 x 36.0 mm
View full details

Description

IMO's relay manufacturing goes back as far as 1972, and over the years we have strived to innovate and produce new types of relays for developing technologies. In 1984 we developed the first BT Type 47 Telecom Relay, and again in 1990 we launched the first BABT compliant isolation relay for data transfer, confirming our place as one of the leading global relay manufacturers. Today, our range of Industrial Relays include Signal Relays, Power Relays, Automotive Relays and Solar Relays, and range of compatible sockets.

IMO's range of Industrial Relays are available with either an AC or DC coil, and suitable for PCB mounting or plug-in via a dedicated socket. We also offer a range of slimline DIN Rail mountable relays which are just 6mm thick, and provide substantial space savings in a panel when compared to traditional plug-in type relays.

Specification

Contact Data
Contact Arrangement: 2C, 3C, 4C
Contact Resistance: 100mΩ (at 1A 6VDC)
Contact Material: Silver Alloy
Contact Rating:
7A 250VAC / 30VDC
5A 250VAC / 30VDC
Max. Switching Voltage: 250VAC / 30VDC
Max. Switching Current:
7A
5A
Max. Switching Power:
210W
150W
1750VA
1250VA
Characteristics
Mechanical Life: 2x10⁷ OPS
Electrical Life: 1x10⁵ OPS
Initial Insulation Resistance: 1000MΩ (at 500VAC)
Dielectric Strength:
Between coil & contacts: 1500VAC 1 min.
Between open contacts: 1000VAC 1 min.
Between contact sets: 1500VAC 1 min.
Operate Time (at nomi. Volt): 25 ms max.
Release Time (at nomi. Volt): 25 ms max.
Shock Resistance:
Functional: 98m/s²
Destructive: 980m/s²
Vibration Resistance: 10 to 55Hz 1mm DA
Ambient Temperature: -40°C to +70°C
Humidity: 95% RH, 40°C
Termination: PCB, Plug-in
Unit Weight: Approx 37g
Construction: Dust protected
Coil Data
Coil Power:
DC type: 0.9W to 1.1W
AC type: 1.2VA to 1.8VA
Safety Approval Ratings: UL/CUL
2PCO: 7A 250VAC / 30VDC
3PCO
4PCO: 5A 250VAC / 30VDC
