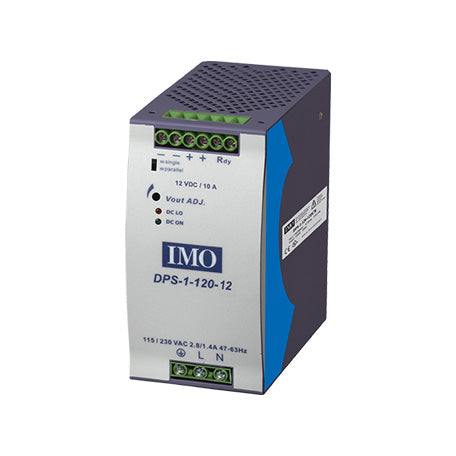

IMO DPS-1-120-12DCR DIN RAIL POWER SUPPLY

IMO DPS-1-120-12DCR DIN RAIL POWER SUPPLY

Regular price $98.00 CAD
Regular price Sale price $98.00 CAD
Sale Sold out
We have 4 in stock

Features and Benefits

  • UL, cUL, UR, cUR, CE
  • Universal input 90~264VAC
  • With check relay
  • High efficiency
  • Short circuit protection
  • Internal input filter
  • IP20

Certifications

IMO-Certifications-ManuAuto  IMO-Certifications-ManuAuto-1  IMO-Certifications-ManuAuto-2   IMO-Certifications-ManuAuto-4   IMO-Certifications-ManuAuto-6

View full details

Description

IMO’s range of industrial power supplies has been designed especially for the control and automation marketplace. The single-phase DPS range offers the benefits of slim lines, universal input, high efficiency, and short circuit protection. The IMO DPS-1 range of AC/DC DIN rail mountable power supplies offers the benefits of slim lines and the security of IMO’s 3-year warranty. The DPS-1 range provides multiple choices for all low-power electrical or electronic systems commonly used in automation applications. As such, they provide a reliable power source for components such as sensors, relays, contactors, timers, temperature controllers, PLCs, process controllers, and HMIs – all of which are also available from IMO.
Offering high efficiency up to 90%, the DPS-1 range is short-circuit protected and has its own integrated internal input filter. The range includes 5W, 10W, and 18W class 2 power supplies in 22.5mm wide plastic enclosures, 30W and 60W in 40.5mm wide plastic enclosures, 100W & 120W in 63.5mm wide plastic enclosures, 240W and 300W in 83mm wide metal enclosures, and the high powered 480W in 175mm wide metal enclosures.

Specification

Rated Input Voltage: 115/230VAC (auto-select)
Input Voltage Range: 90 to 264VAC, 210 to 375VDC
Line Frequency: 47 - 63Hz
Inrush Current (115 / 230VAC): 24/48A
Power Dissipation: 24W
Power Factor (Passive): 0.7 (Vi:230VAC)
Output Power (W): 120W
Output Voltage: 13.6VDC (12VDC)
Output Current: 8.8A (10A)
Output voltage accuracy: ±1%
Minimum load: 0%
Line regulation: ±0.5%
Load regulation: ±1%
Turn on time: 1000ms after AC applied to input at full resistive load
Voltage fall time: 150ms
Voltage rise time: 150ms
Hold up time (115/230VAC): 25/30ms
Temperature coefficient: ±0.03%/°C
Ripple & noise: 50mV
Voltage trim range: 11.4 - 14.5VDC
DC ON indicator (Green LED): 10.4 - 11.4VDC
DC LOW indicator (Red LED): 10.3 - 11.3VDC
Efficiency (min/typ): 82/84%
MTBF (Bellcore Iss. 6@40C): 481,000
Isolation voltage: 3,000VAC/4,242VDC
Isolation resistance: 100MΩ @ 500VDC
Ambient temperature: -35 to +71°C
Derating (from 61 to 71°C): 2.5%/°C
Storage temperature: -40 to +85°C
Relative humidity: 20 - 95% RH
Cooling: Free air convection
Dimensions (LxWxD): 124.5 x 64 x 123.6mm
Weight: 920g
Case Material: Metal
Rated Overload Protection: 105 - 125%
Over Voltage Protection: 15 - 16.8VDC
Output Short Circuit: Fold forward
Approvals & Standards: CE, TUV, UL, cUL
