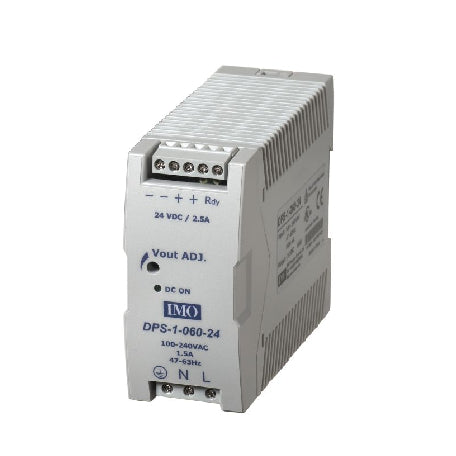

IMO DPS-1-060-24DC DIN RAIL POWER SUPPLY

Name: IMO DPS-1-060-24DC DIN RAIL POWER SUPPLY
Availability: BackOrder

IMO DPS-1-060-24DC DIN RAIL POWER SUPPLY

$125.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Output voltages 24VDC / 8.8W
Universal Input: 90-264VAC / 120-375VDC
High Efficiency
Short Circuit Protection
Internal Input Filter
IP20 Protection Rated
Class 2 (selected models)

Certifications

View full details

Description

IMO’s range of industrial power supplies has been designed especially for the control and automation marketplace. The single-phase DPS range offers the benefits of slim lines, universal input, high efficiency, and short circuit protection. The IMO DPS-1 range of AC/DC DIN rail mountable power supplies offers the benefits of slim lines and the security of IMO’s 3-year warranty. The DPS-1 range provides multiple choices for all low-power electrical or electronic systems commonly used in automation applications. As such, they provide a reliable power source for components such as sensors, relays, contactors, timers, temperature controllers, PLCs, process controllers, and HMIs – all of which are also available from IMO.
Offering high efficiency up to 90%, the DPS-1 range is short-circuit protected and has its own integrated internal input filter. The range includes 5W, 10W, and 18W class 2 power supplies in 22.5mm wide plastic enclosures, 30W and 60W in 40.5mm wide plastic enclosures, 100W & 120W in 63.5mm wide plastic enclosures, 240W and 300W in 83mm wide metal enclosures, and the high powered 480W in 175mm wide metal enclosures.

Data sheet

Specification

Input Voltage: 90-264VAC / 120-375VDC
Output Wattage: 60W
Output Voltage / Power Dissipation: 24VDC / 8.8W
Output Current: 2.5A
Efficiency (min/typ): 86/89%
Approval: cURus - Class 2
Isolation Voltage: 3000VAC/4242VDC
Isolation Resistance: 100MΩ @ 500VDC
Ambient Temperature: -41 to +71°C
Derating: (61 to 71°C) 2.5%/°C
Storage Temperature: -25 to +85°C
Relative Humidity: 20 to 95% RH
Cooling: Free air convection
Dimensions: L90 x W40.5 x D114 mm
Weight: 270g
Case Material: Plastic
Rated Input Voltage: 120 ~ 240VAC
Input Voltage Range: 85 to 264VAC, 90 to 375VDC
Line Frequency: 47 ~ 63Hz
Power Factor @ 115VAC: 0.55 Typical (0.57 Measured)
Power Factor @ 230VAC: 0.45 Typical (0.49 Measured)
Inrush Current (115 / 230VAC): 20 / 40A
Output Voltage Accuracy: +1%
Minimum Load: 0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Turn On Time: 1000ms after AC applied to input at full resistive load
Voltage Fall Time: 150ms
Voltage Rise Time: 150ms
Hold Up Time (115 / 230VAC): 25 / 30ms
Temperature Coefficient: ±0.03%/°C
Ripple & Noise: 50mV
Voltage Trim Range: 24 ~ 28VDC
DC ON & LOW Indicator (Green & Red LED): 18 ~ 21.6VDC
Rated Overload Protection: 110 ~ 150%
Over Voltage Protection: 30 ~ 33VDC
Output Short Circuit: Fold Forward
