Regular price $164.00 CAD
Regular price Sale price $164.00 CAD
Sale Sold out

Features and Benefits

  • Range of rotary cam switches with choice of 4 operators
  • Key operators permit key removal in all latched positions
  • Finger proof screw terminals to IP20 protection
  • UL approved
  • Designed to IEC 60947-3

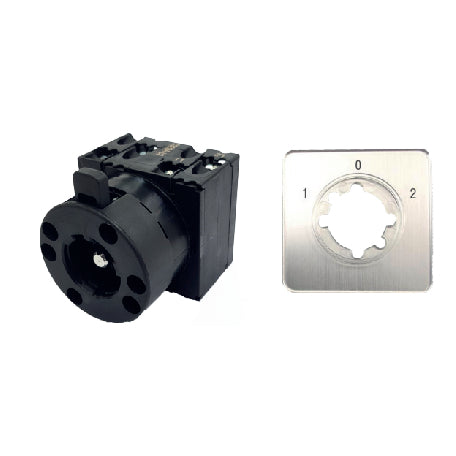

  • Switch body supplied
  • With legend plate for square escutcheon frame actuator


View full details


Effective protection of 3-phase motors against overcurrents and short circuits while minimising false tripping is a challenging application. IMO's C4 range of Motor Circuit Breakers are tailor made for this task, featuring a range of features to maximise protection while reducing unnecessary down-time. Based on combined thermal / electro-magnetic technologies, overcurrent protection can be precisely set to the required current draw, while the electromagnetically activated short circuit protection is preset at 13 x the nominal current, avoiding false trips at startup due to current inrush.

Inbuilt phase failure protection provides additional protection from overheating and resultant damage, while an extensive range of accessories includes undervoltage or shunt trip modules, signalling and alarm contacts and installation products such as busbar, combination mounting kits and door-interlock adaptors. All devices may be mounted on 35mm DIN rail, or in the case of C4/100 types, 75mm DIN rail. Operating handles are padlockable for isolation purposes and units may be equipped with other safety features such as covers for the current setting scale and additional insulation barriers for higher voltage applications.


Rated thermal current Ith: 50A
Rated operational voltage Ue (IEC/VDE/BS): 690V
Utilisation category: AC21A, AC21B: 50A, AC23B 400V: 45A, AC15 220/240V: 16A, AC15 380/440V: 7A
Utilisation category DC21A, DC21B 30V: 40A
Cable cross connection: 1.5-6 mm²
Contact material: Silver Alloy
Mounting hole diameter: 22.5mm
Maximum backup fuse (gl): 50A
Protection class from rear: IP20
Ambient Temperature: -40 to +60ºC
Storage Temperature: -50 to +90ºC
