Balluff

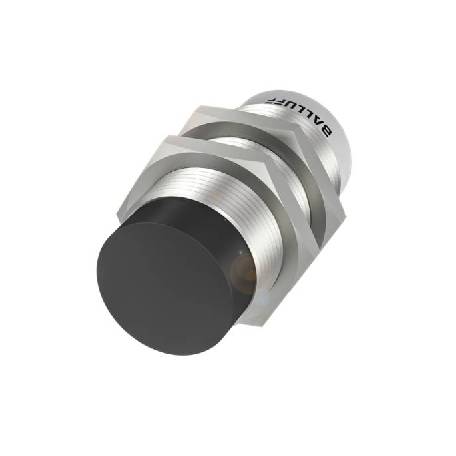

BALLUFF BES02YH INDUCTIVE STANDARD SENSORS

BALLUFF BES02YH INDUCTIVE STANDARD SENSORS

$259.95 CAD
$259.95 CAD
Sale Sold out

Features and Benefits

  • Connection:  Connector, M12x1-Male, 4-pin
  • Operating temperature: -25 to 70 °C
  • IP rating: IP54
  • Range: 40mm
  • Material Sensing Surface: PBT
View full details

Description

Our BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 30 x 73.5 mm
Style Housing: M30x1.5
Installation: non-flush
Range: 40 mm
Switching output: NPN Normally open (NO)
Switching frequency: 100 Hz
Housing material: Brass, Chrome-plated
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP54
Approval/Conformity: CE, cULus, WEEE
