Balluff

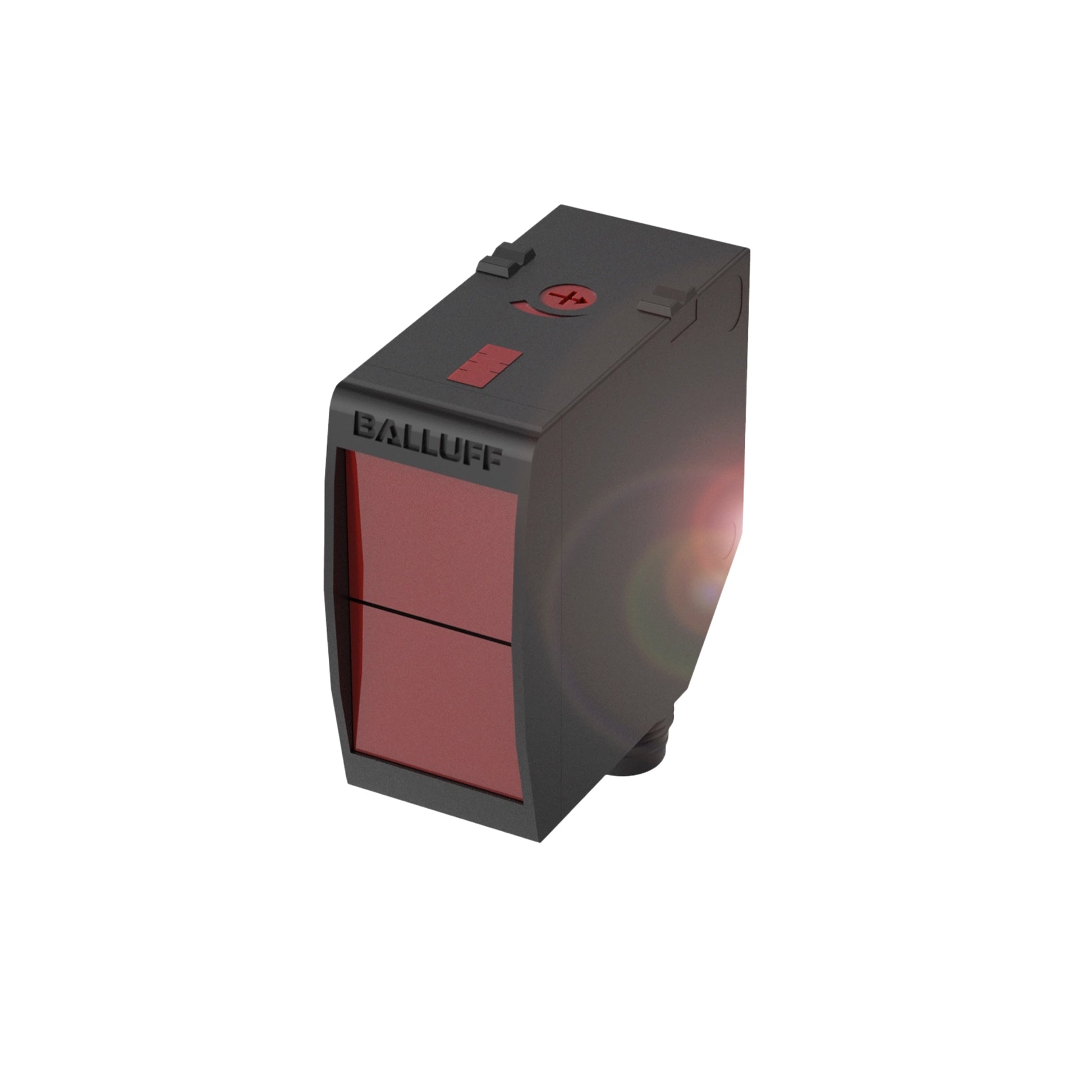

BALLUFF BOS0178 PHOTOELECTRIC SENSOR

$335.00 CAD

~~$335.00 CAD~~ $335.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Ideal for distance measurement
Distance monitoring of short, medium, and long ranges
Additional switching outputs with adjustable switchpoints
Available for almost all products
Teach in on the sensor via teach-in input or button
Optionally with IO-Link interface for easy parameterization and additional functions

View full details

Description

Data sheet

Specification

Special characteristics: Washdown
Series: 23K
Dimension: 23 x 51 x 52.4 mm
Interface: PNP NO/NC
Input function: Light-on/dark-on
Principle of operation: Photoelectric sensor
Principle of optical operation: Diffuse sensor, Triangulation
Special optical feature: Background suppression
Beam characteristic: Focus, typical at 500 mm
Light type: LED Red light
Light spot size: 15 x 15 mm at focal point
Range: 3-800 mm
Connection: Connector, M12x1-Male, 4-pin
Housing material: PC, ABS
Material sensing surface: PMMA
Operating voltage Ub: 10-30 VDC
Approval/Conformity: Ecolab, CE, cULus, WEEE
