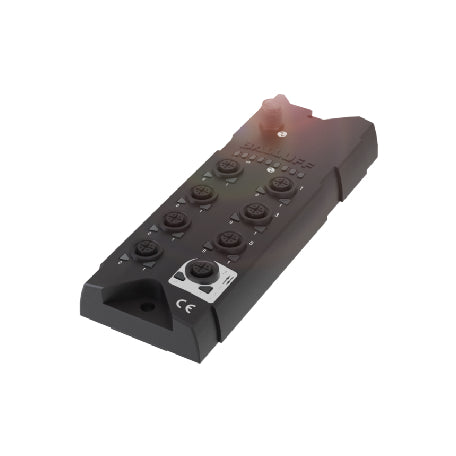

BALLUFF BNI00CH IO-LINK SENSOR/ACTUATOR HUBS

BALLUFF BNI00CH IO-LINK SENSOR/ACTUATOR HUBS

$447.51 CAD
$447.51 CAD
Sale Sold out

Features and Benefits

  • Simple and cost-saving installation and maintenance
  • Detects short circuits, overloads, and cable breaks at the port
  • Great flexibility due to a wide range of variants
View full details

Description

With their rugged housings, our BNI IO-Link sensor/actuator hub series are ideal for use in harsh industrial environments. The I/O blocks are based on M12 or M8 plug connections, making them easy and economical to install and maintain.

The port-specific single-channel monitoring detects short circuit and overloads, as well as a cable break at the port. This degree of selective diagnosis is unique among I/O blocks.

Highest functionality with the best flexibility offers our different variants of BNI IO-Link sensor/actuator hub series. Different units allow you to meet your specific demands and requirements. Depending on the application you can manage up to 16 digital inputs and outputs (with or without separate supply voltage for high load) or up to 8 analog signals.

Depending on the application, we offer different types of housings, for example plastic and metal. As well as different IP protection classes.

Data sheet

Specification

Interface: IO-Link 1.1
Operating voltage Ub: 18...30.2 VDC
Connection (COM 1): M12x1-Male, 4-pin, A-coded
Connection slots: 8x M12x1-Female, 5-pin, A-coded
Digital inputs: 16x PNP, Type 3
Configurable inputs/outputs: No
Extension port: Yes
Single-channel monitoring: Yes
Additional function: Alternative process data mapping
Current sum US, sensor: 3.5 A
Housing material: PPS
Dimension: 68 x 36.8 x 183.5 mm
Ambient temperature: -5...70 °C
IP rating: IP67 (when threaded in)
Transfer rate (COM2): 38.4 kBaud
Process data cycle min.: 4.5 ms
Process data IN: 4
