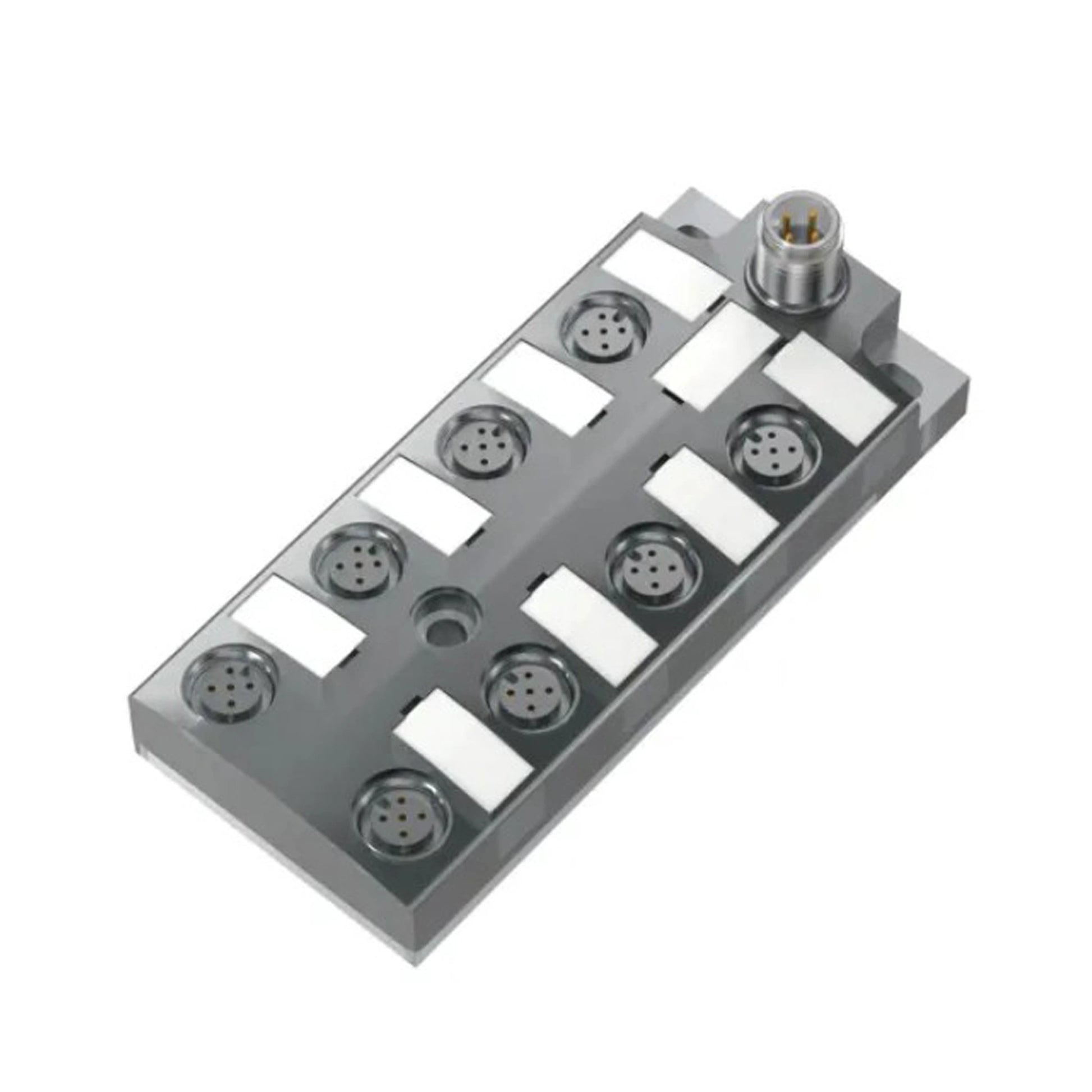

Balluff BNI0074 IO-Link Sensor/Actuator Hub

$200.00 CAD

Special Offer Out of Stock

We have 5 in stock

Product variants

Quantity

Features and Benefits

Inputs: NPN, Type 2
Number of Inputs: 16
Operating Voltage UB: 18 V to 30.2 V
Housing Material: Trogamid CX9704
Mounting Type: 3-hole Screw Mounting
Ambient Temperature: -5 °C to 55 °C

View full details

Description

With their rugged housings, our BNI IO-Link sensor/actuator hub series are ideal for use in harsh industrial environments. The I/O blocks are based on M12 or M8 plug connections, making them easy and economical to install and maintain.

The port-specific single-channel monitoring detects short circuit and overloads, as well as a cable break at the port. This degree of selective diagnosis is unique among I/O blocks.

Highest functionality with the best flexibility offers our different variants of BNI IO-Link sensor/actuator hub series. Different units allow you to meet your specific demands and requirements. Depending on the application you can manage up to 16 digital inputs and outputs (with or without separate supply voltage for high load) or up to 8 analog signals.

Depending on the application, we offer different types of housings, for example plastic and metal. As well as different IP protection classes.

Data sheet

Specification

Inputs: NPN, Type 2
Number of inputs: 16
Operating voltage UB min. DC [V]: 18
Operating voltage UB max. DC [V]: 30.2 V
Transfer rate: COM2 (38.4 kBaud)
Cycle time min. : 2.5 ms
Housing material: Trogamid CX9704
Length: 115.0 mm
Mounting type: 3-hole screw mounting
Number of plug-in positions: 8
Ambient temperature Ta min. -5 °C
Ambient temperature Ta max. 55 °C
Approvals / Conformity: CE
Enclosure Type per IEC 60529: IP67 (when connected)
