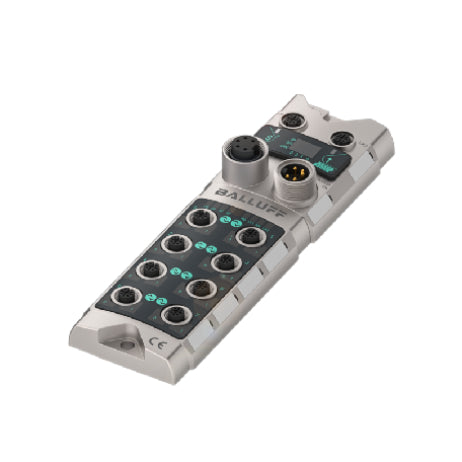

BALLUFF BNI005H NETWORK BLOCKS FOR PROFINET

BALLUFF BNI005H NETWORK BLOCKS FOR PROFINET

Regular price $1,076.53 CAD
Regular price Sale price $1,076.53 CAD
Sale Sold out
We have 4 in stock

Features and Benefits

  • Installation freedom
  • simple wiring
  • consistent diagnostics
  • central configuration through a connection with IO-Link
View full details

Description

The fact that industrial automation has made a significant advancement with Profinet is easy to understand. With Profinet, you directly link drives and safety technology to the network environment.

This Ethernet-based system is significantly faster than Profibus but can readily be combined with it. The same applies to connections with IO-Link. You save time and money, while connectivity ensures improved process quality.

With our network blocks, Profinet can be integrated consistently from the control level to the drive, even in harsh environments.

Specification

Interface: Profinet I/O
Fast Start-Up (FSU): yes
Operating voltage Ub: 18...30.2 VDC
Display: yes
Connection (COM 1): M12x1-Female, 4-pin, D-coded
Connection (COM 2): M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN): 7/8"-Male, 5-pin
Connection (supply voltage OUT): 7/8"-Female, 5-pin
Connection slots: 8x M12x1-Female, 5-pin, A-coded
Digital inputs: 16x PNP, Type 3
Digital outputs: 16x PNP
Configurable inputs/outputs: yes
Output current max.: 2 A short-circuit proof and overload-proof
Current sum US, sensor: 9.0 A
Current sum UA, actuator: 9.0 A
Housing material: Zinc, Die casting
Dimension: 68 x 37.9 x 224 mm
Ambient temperature: -5...70 °C
IP rating: IP67
Auxiliary interfaces: 8x IO-Link
IO-Link version: 1.1
Port-class: Type A
Safety Hub Support: yes
