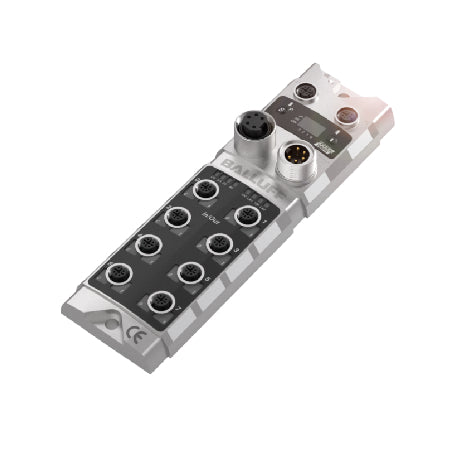

BALLUFF BNI0053 NETWORK BLOCKS FOR PROFINET

BALLUFF BNI0053 NETWORK BLOCKS FOR PROFINET

$385.00 CAD
$385.00 CAD
Sale Sold out

Features and Benefits

  • Installation freedom
  • simple wiring
  • consistent diagnostics
  • central configuration through a connection with IO-Link
View full details

Description

The fact that industrial automation has made a significant advancement with Profinet is easy to understand. With Profinet, you directly link drives and safety technology to the network environment.

This Ethernet-based system is significantly faster than Profibus but can readily be combined with it. The same applies to connections with IO-Link. You save time and money, while connectivity ensures improved process quality.

With our network blocks, Profinet can be integrated consistently from the control level to the drive, even in harsh environments.

Data sheet

Specification

Interface: Profinet
Fast Start-Up (FSU): yes
Operating voltage Ub: 18...30.2 VDC
Connection (COM 1): M12x1-Female, 4-pin, D-coded
Connection (COM 2): M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN): 7/8"-Male, 5-pin
Connection (supply voltage OUT): 7/8"-Female, 5-pin
Connection slots: 8x M12x1-Female, 5-pin, A-coded
Digital inputs: 16x PNP, Type 2
Configurable inputs/outputs: no
Current sum US, sensor: 9.0 A
Housing material: Zinc, Die casting
Dimension: 68 x 37.9 x 224 mm
Ambient temperature: -5...70 °C
IP rating: IP67
