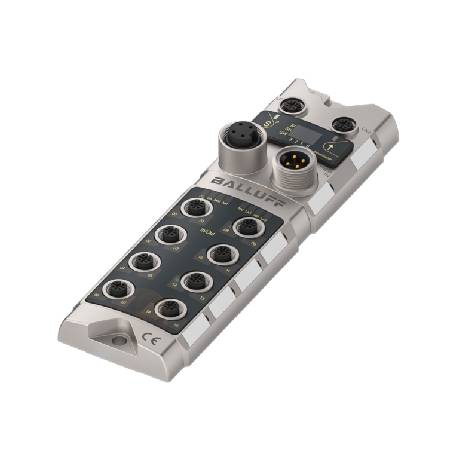

BALLUFF BNI004F NETWORK BLOCK FOR ETHERNET/IP

BALLUFF BNI004F NETWORK BLOCK FOR ETHERNET/IP

$453.66 CAD
$453.66 CAD
Sale Sold out

Features and Benefits

  • Time and cost savings:
  • Fast installation
  • Simple integration into existing networks
  • Easy module replacement through an innovative address plug
View full details

Description

High efficiency is only feasible with an optimized network. Balluff offers a comprehensive Ethernet/IP line of products for your high-efficiency system. As a standard for network technology recognized worldwide, Ethernet/IP has already replaced Devicenet in many areas. The Ethernet-based technology is significantly faster and enables the integration of drive technology.

Balluff network blocks for Ethernet/IP also score points for their high user-friendliness. Only Balluff Ethernet blocks can block IP addresses and protect against accidental changes. This increases your security and simplifies maintenance.

Data sheet

Specification

Interface: EtherNet/IP
Operating voltage Ub: 18...30.2 VDC
Connection (COM 1): M12x1-Female, 4-pin, D-coded
Connection (COM 2): M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN): 7/8"-Male, 4-pin
Connection (supply voltage OUT): 7/8"-Female, 4-pin
Connection slots: 8x M12x1-Female, 5-pin, A-coded
Digital inputs: 16x PNP, Type 2
Digital outputs: 16x PNP
Configurable inputs/outputs: Yes
Output current max.: 2 A
Current sum US, sensor: 9.0 A
Current sum UA, actuator: 9.0 A
Housing material: Zinc, Die casting
Dimension: 68 x 37.9 x 224 mm
Ambient temperature: -5...70 °C
IP rating: IP67
