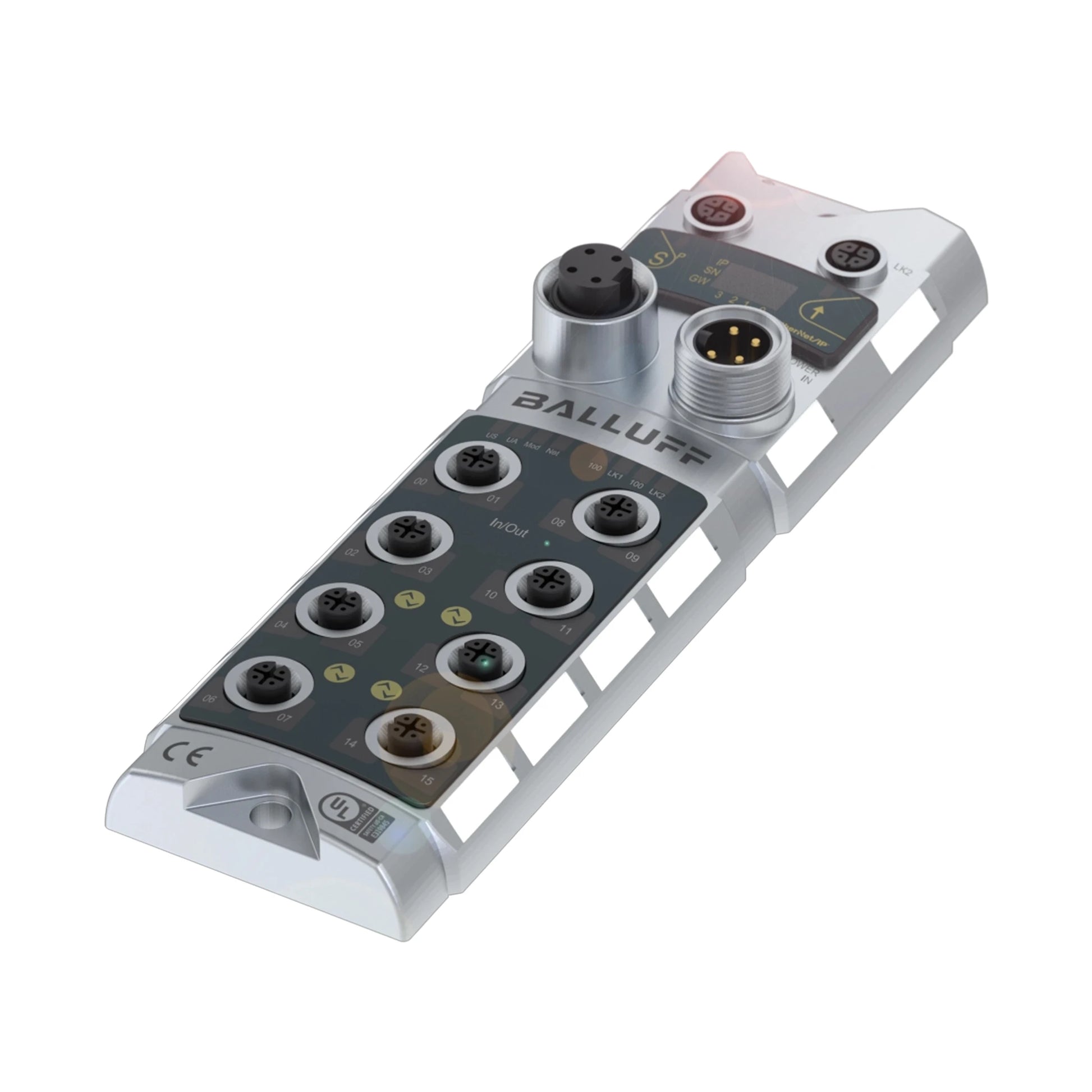

Balluff BNI004A Network Block for ETHERNET/IP

Interface: EtherNet/IP
Auxiliary interfaces: 4x IO-Link
Port-class: Type A
Output current max. : 2 A
Operating voltage Ub: 18...30.2 VDC
Connection (COM 1): M12x1-Female, 4-pin, D-coded
Connection (COM 2): M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN): 7/8"-Male, 4-pin
Connection (supply voltage OUT): 7/8"-Female, 4-pin
Connection slots: 8x M12x1-Female, 5-pin, A-coded
Digital inputs: 16x PNP, Type 2
Digital outputs: 16x PNP
Configurable inputs/outputs: yes
Current sum US, sensor: 9.0 A
Current sum UA, actuator: 9.0 A
Housing material: Zinc, Die casting
Dimension: 68 x 37.9 x 224 mm
Ambient temperature: -5...70 °C
IP rating: IP67
IO-Link version: 1.1
