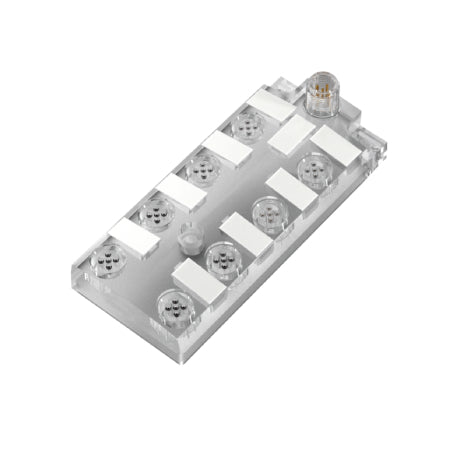

BALLUFF BNI0006 IO-LINK SENSOR/ACTUATOR HUBS

$199.61 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Simple and cost-saving installation and maintenance
Detects short circuits, overloads, and cable breaks at the port
Great flexibility due to a wide range of variants

View full details

Description

Data sheet

Specification

Interface: IO-Link 1.0
Operating Voltage Ub: 18-30.2 VDC
Connection (COM 1): M12x1-Male, 4-pin, A-coded
Connection Slots: 8x M12x1-Female, 5-pin, A-coded
Digital Inputs: 16x PNP, Type 2
Configurable Inputs/Outputs: No
Current Sum US, Sensor: 4 A
Housing Material: PA, Transparent
Dimension: 50 x 30.8 x 115 mm
Ambient Temperature: -5-55 °C
IP Rating: IP67 (when threaded in)
Transfer Rate: COM2 (38.4 kBaud)
Process Data Cycle Minimum: 3.0 ms
Process Data IN: 2 bytes
