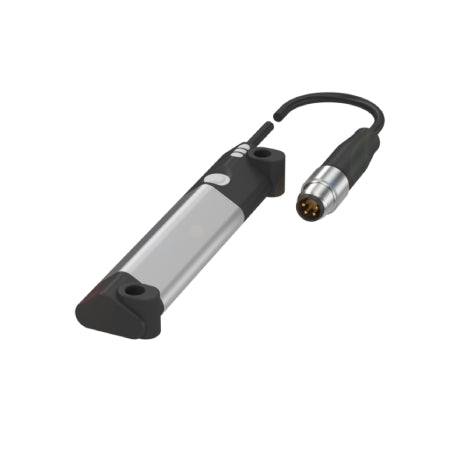

BALLUFF BMP0005 MAGNETIC FIELD POSITIONING SYSTEMS

Measuring Range: 64 mm
Dimension: 17.5 x 9.6 x 74 mm
Analog Output: Analog, voltage/current selectable 0-10 V/4-20 mA
Interface: IO-Link 1.1
Resolution: ≤ 1 µm (IO-Link), 12 Bit (analog)
Repeat Accuracy: 100 µm
Non-linearity (typical): ±250 µm
Operating Voltage Ub: 15-30 VDC
Connection: Cable with connector, M8x1-Male, 4-pin, 0.5 m, PUR
Housing Material: PA 12, Aluminum
Ambient Temperature: -25-85 °C
IP Rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
