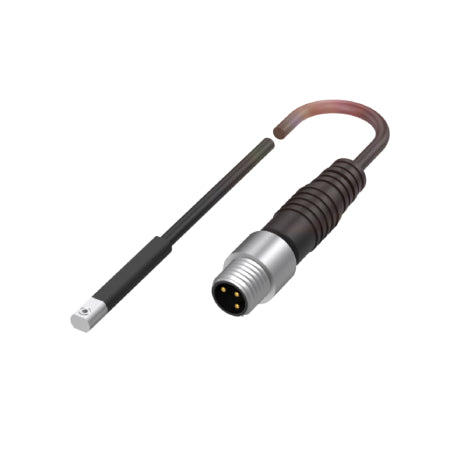

BALLUFF BMF00EL MAGNETIC FIELD SENSORS FOR C-SLOT

BALLUFF BMF00EL MAGNETIC FIELD SENSORS FOR C-SLOT

$58.01 CAD
$58.01 CAD
Sale Sold out

Features and Benefits

  • Reliable switching behavior thanks to precise switchpoints
  • Non-contacting and thus free from wear
  • Impervious to contamination
View full details

Description

Balluff BMF magnetic field sensors for T-slots can be mounted directly in the groove and distinguish themselves with their particularly strong hold. They can be mounted flush so that they are suitable for space-critical applications.

In addition, Balluff offers extremely short configurations for flexible usage options. The sensors detect the piston position without contact through the cylinder walls. The system is adaptable for cylinders and grippers with both strong and weak magnets.

Data sheet

Specification

Slot Type: C-slot
Dimension: 24 x 3 x 3.75 mm
Principle of Operation: Magnetic field sensor
Connection: M8x1-Male, 3-pin
Cable: PUR, 0.3 m
Application: Pneumatic cylinder with C-slot, e.g., SMC, Festo*, Schunk, Sommer, Gimatic (*not suitable for Festo Series ADVC and AEVC)
Mounting Part: Can be installed in C-slot from above
Housing Material: PA 12
Switching Output: PNP normally open (NO)
Switching Frequency: 3000 Hz
Operating Voltage Ub: 10...30 VDC
Ambient Temperature: -25...85 °C
IP Rating: IP67
Approval/Conformity: cULus, CE, UKCA, WEEE
