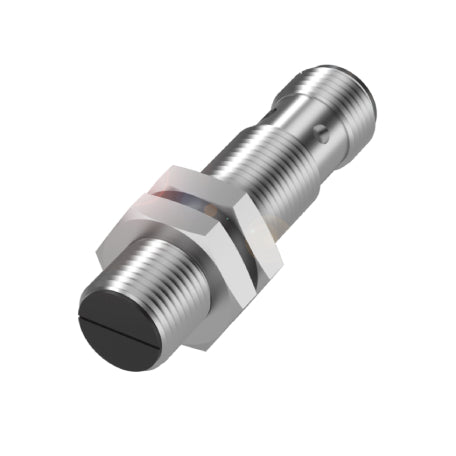

BALLUFF BMF00C7 BMF 12

BALLUFF BMF00C7 BMF 12

Regular price $182.76 CAD
Regular price Sale price $182.76 CAD
Sale Sold out
We have 10 in stock

Features and Benefits

  • Reliable switching behavior thanks to precise switchpoints
  • Non-contacting and thus free from wear
  • Impervious to contamination
View full details

Description

Our BMF magnetic field sensors for T-slots can be mounted directly in the groove and distinguish themselves with their particularly strong hold. They can be mounted flush so that they are suitable for space-critical applications.

In addition, Balluff offers extremely short configurations for flexible usage options. The sensors detect the piston position without contact through the cylinder walls. The system is adaptable for cylinders and grippers with both strong and weak magnets.

Thanks to the especially bright LEDs, they reliably recognize the switching state of the sensor, even at large distances. The magnetic field sensors for T-slots are also available in metal housings, for use in very harsh environments, such as with welding spatter or flying sparks. Also available with magnetic-field-sensitive electronics for industrial environments with high welding currents.

Specification

Dimension: Ø 12 x 50 mm
Principle of Operation: Magnetic field sensor
Connection: M12x1-Male, 4-pin, A-coded
Housing Material: Brass
Switching Output: PNP Normally open (NO)
Switching Frequency: 10000 Hz
Operating Voltage Ub: 10...30 VDC
Ambient Temperature: -25...70 °C
IP Rating: IP67
Approval/Conformity: CE, UKCA, WEEE, cULus
