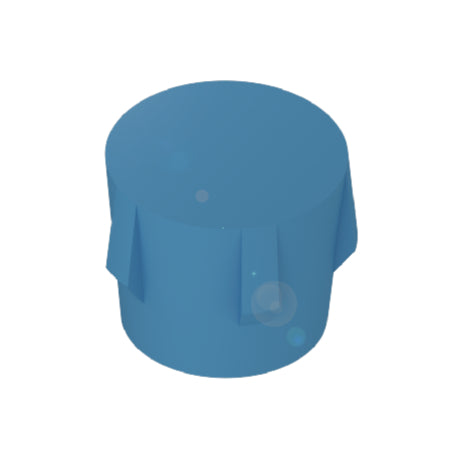

BALLUFF BIS018Y HF DATA CARRIERS (13.56 MHz)

BALLUFF BIS018Y HF DATA CARRIERS (13.56 MHz)

$85.53 CAD
$85.53 CAD
Sale Sold out

Features and Benefits

  • Inductive coupling for data and power transfer
  • Unique, ID number for each carrier
  • Conforms to ISO 15693 for global compatibility
  • EEPROM variant supports up to 992 bytes of memory
  • FRAM variant offers up to 128 kB memory for extensive usage
  • Attachment options include adhesion or screws
  • High-level protection up to IP68/69K
  • Versatile properties designed for metal installation and high temperatures
  • Eight times faster than ISO 15693 for time-critical applications
  • Special key carriers support two-sided read/write operations
  • Compact-sized data carriers available
  • Easy attachment and detachment with Databolts
View full details

Description

Data carriers accompany the workpieces through the entire production process. In this context, they are in part exposed to extreme conditions from high temperatures, metal enclosure, and environmental other influences. Our HF data carriers withstand the high demands of such environments. Balluff's broad portfolio means you will always find the right product to fit any application or conditions.

Data sheet

Specification

Product Group: HF (13.56 MHz)
Dimension: Ø 4.35 x 3.6 mm
Antenna type: Round
UID serial number, read-only: 8 Byte
Memory type: EEPROM
Supported data carrier types: DIN ISO 15693
User data, read/write: 112 Byte
Storage temperature: -40...85 °C
Ambient temperature: -40...85 °C
Housing material: Epoxy-resin/fiberglass, PVC
IP rating: IPx8
Installation: Metal-free (clear zone), on metal, flush in metal
Approval/Conformity: CE, WEEE
