Balluff

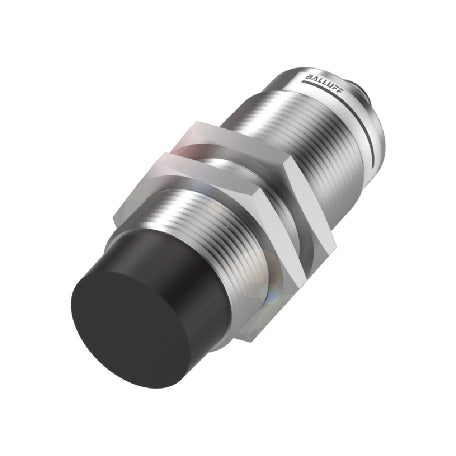

BALLUFF BIS0108 HFREAD/WRITE HEADS (13.56 MHz) W/ INTEGRATED PROCCESOR UNIT

Name: BALLUFF BIS0108 HFREAD/WRITE HEADS (13.56 MHz) W/ INTEGRATED PROCCESOR UNIT
Availability: BackOrder

BALLUFF BIS0108 HFREAD/WRITE HEADS (13.56 MHz) W/ INTEGRATED PROCCESOR UNIT

$932.52 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Available interfaces: IO-Link, Serial RS232, RS485/Subnet 16, RS422, USB
Also with bus interface: Connect All-in-One RFID Reader BIS M-4008 direct to Profinet
Reliable use in harsh environments: rugged IP67 housing
Status displays directly on the housing of the reader facilitate the commissioning and minimize down times

View full details

Description

Data carriers accompany the workpieces through the entire production process. In this context, they are in part exposed to extreme conditions from high temperatures, metal enclosure, and environmental other influences. Our HF data carriers withstand the high demands of such environments. Balluff's broad portfolio means you will always find the right product to fit any application or conditions.

Data sheet

Specification

Special Characteristics: Washdown
Product Group: HF (13.56 MHz)
Dimension: 51.5 x 6.4 x 51.5 mm
Antenna Type: Round
UID Serial Number, Read-only: 8 Byte
Memory Type: EEPROM
Supported Data Carrier Types: DIN ISO 15693
User Data, Read/Write: 112 Byte
Storage Temperature Temporary: -40...220 °C 1x1000 h, 1500x30 min
Ambient Temperature: -40...85 °C
Housing Material: PPS
IP Rating: IP68
Installation: Metal-free (clear zone)
Approval/Conformity: CE, UKCA, Ecolab, WEEE
