balluff

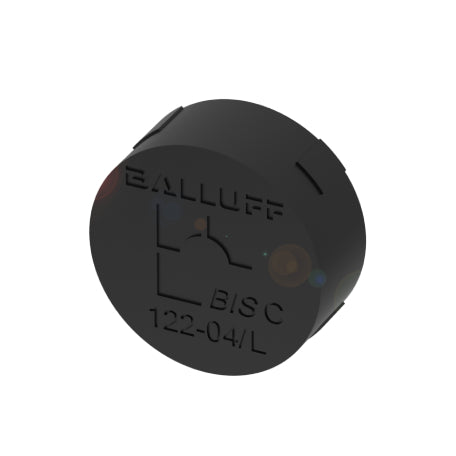

BALLUFF BIS0011 LF DATA CARRIERS (70/455 kHz)

BALLUFF BIS0011 LF DATA CARRIERS (70/455 kHz)

Regular price $78.40 CAD
Regular price Sale price $78.40 CAD
Sale Sold out
We have 90 in stock

Features and Benefits

  • LF RFID Tag: Ø 10 x 4.5 mm
  • Frequency: 70/455 kHz
  • Memory: EEPROM (User data: 511 Byte)
  • Temperature Range: -30 to 85°C (storage), 0 to 70°C (ambient)
  • Housing: Epoxy-resin/fiberglass
  • IP Rating: IP68
  • Installation: Metal-free, on metal, flush in metal
View full details

Description

LF data carriers accompany the workpieces through the entire production process. In this context, they are exposed to extreme conditions such as high temperatures, metal enclosure or environmental influences.

Data carriers from Balluff withstand the high requirements: They are insensitive to interference in a metal enclosure, high-performing in a refrigerant- and lubricant-rich environment and suitable for use in deionized water in an autoclave and in a vacuum.

Specification

Product Group: LF (70/455 kHz)
Dimension: Ø 10 x 4.5 mm
Antenna type: Round
Memory type: EEPROM
User data, read/write: 511 Byte
Storage temperature: -30...85 °C
Ambient temperature: 0...70 °C
Housing material: Epoxy-resin/fiberglass
IP rating: IP68
Installation: Metal-free (clear zone), On metal, Flush in metal
Approval/Conformity: CE, UKCA, cULus, WEEE
