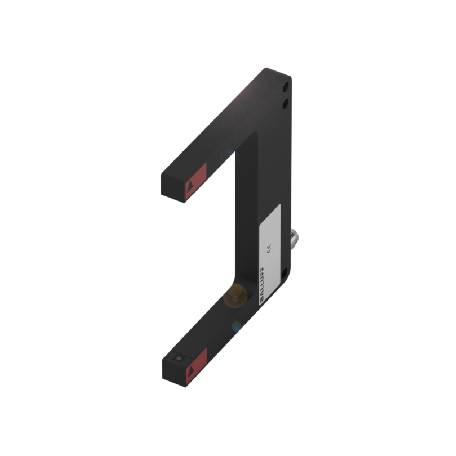

BALLUFF BGL0023 FORK SENSOR METAL

BALLUFF BGL0023 FORK SENSOR METAL

Regular price $248.11 CAD
Regular price Sale price $248.11 CAD
Sale Sold out
We have 1 in stock

Features and Benefits

  • Different light types (red light, infrared, laser)
  • Robust metal housing or compact plastic housing
  • Precise detection and high repeatability
  • Large selection of different shapes and sizes
  • No time-intensive adjustment
View full details

Description

In terms of accuracy, the fork sensors from Balluff are unrivaled for small-component and detail detection as well as operational reliability. Our BGL series fork sensors have a transmitter and receiver in one housing that are already aligned. This reduces effort and saves valuable time during commissioning.

Achieve the best results with our laser fork sensors for precise positioning, secure detection of fast movement sequences, small parts in robotics, and automation. Our comprehensive portfolio also offers you reliable solutions for difficult applications, e.g. for transparency detection, water detection, and web edge control. With the compact sizes of our small BGL MiniSlot series fork sensors we have the ideal solution for automation applications where normal photoelectronic sensors are too large to fit.

Angle sensors are a logical development of Balluff's fork sensors for more demanding applications. Their special housing configuration and beam geometry enable objects to approach and be recognized from almost every direction. The installation of the angle sensors is very simple even in difficult, confined spaces: The transmitter and receiver are firmly affixed to each other, making expensive brackets superfluous.

Specification

Series: A
Dimension: 10 x 100 x 88 mm
Fork opening: 80 mm
Interface: PNP NO/NC
Principle of operation: Fork sensor
Principle of optical operation: Through-beam sensor
Beam characteristic: Divergent
Light type: LED Red light
Light spot size: Ø 2.0 mm Light exit
Connection: Connector, M8x1-Male, 3-pin
Housing material: Zinc, Die casting, Painted
Material sensing surface: Glass
Operating voltage Ub: 10...30 VDC
Approval/Conformity: CE, UKCA, cULus, WEEE
Trademark: Global
