Balluff

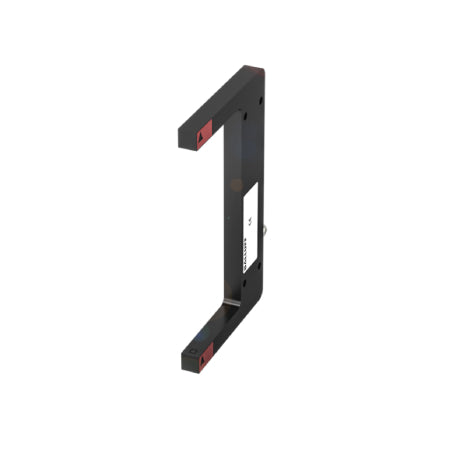

BALLUFF BGL0007 FORK SENSOR METAL

$247.55 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Different light types (red light, infrared, laser)
Robust metal housing or compact plastic housing
Precise detection and high repeatability
Large selection of different shapes and sizes
No time-intensive adjustment

View full details

Description

Data sheet

Specification

Series: A
Dimension: 10 x 140 x 93 mm
Fork opening: 120 mm
Interface: PNP normally open/normally closed (NO/NC)
Principle of operation: Fork sensor
Principle of optical operation: Through-beam sensor
Beam characteristic: Divergent
Light type: LED, red light
Light spot size: Ø 2.5 mm Light exit
Connection: Connector, M8x1-Male, 3-pin
Housing material: Zinc, Die casting, Painted
Material sensing surface: Glass
Operating voltage Ub: 10...30 VDC
Approval/Conformity: CE, UKCA, cULus, WEEE
Trademark: Global
