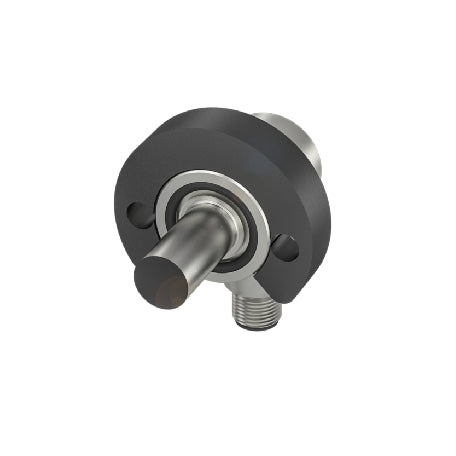

BALLUFF BES05Z1 BES SP

BALLUFF BES05Z1 BES SP

Regular price $482.51 CAD
Regular price Sale price $482.51 CAD
Sale Sold out

Features and Benefits

  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -25 to 70 °C
  • Operating Voltage Ub: 10 to 30 VDC
  • IP Rating: IP67
  • Material Sensing Surface: Duroplast
View full details

Description

Automation without inductive sensors can hardly be imagined. Wear-resistant, reliable non-contact position detection of metallic objects is required wherever automation is used, whether in mechanical engineering, electronics production, automotive, food, or plastics industries.

Balluff offers a wide range of inductive sensors with diverse designs for nearly any application: from standard sensors to sensors with increased switching distance, hygienic sensors, high-pressure sensors, ex-zone sensors for hazardous areas, and factor 1 sensors. Some sensors have an additional ceramic or PTFE coating so that weld spatter, for example, cannot adhere to them. Sensors that are both factor 1 and all-metal are also available.

Aided by inductive sensors from Balluff, you can automate, monitor, and control processes and conditions at the highest quality, even in extreme environments.

Specification

Dimension: Ø 12.7 mm x 1.025 ″
Style Housing: Ø 12.7 mm
Installation: Flush mounting
Range: 2 mm
Switching output: PNP/NPN Normally open (NO)
Switching frequency: 30 Hz
Housing material: Zinc, Aluminum
Material sensing surface: Duroplast
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Pressure rating max: 206 bar
IP rating: IP67
Approval/Conformity: CE, cULus, UKCA, WEEE
